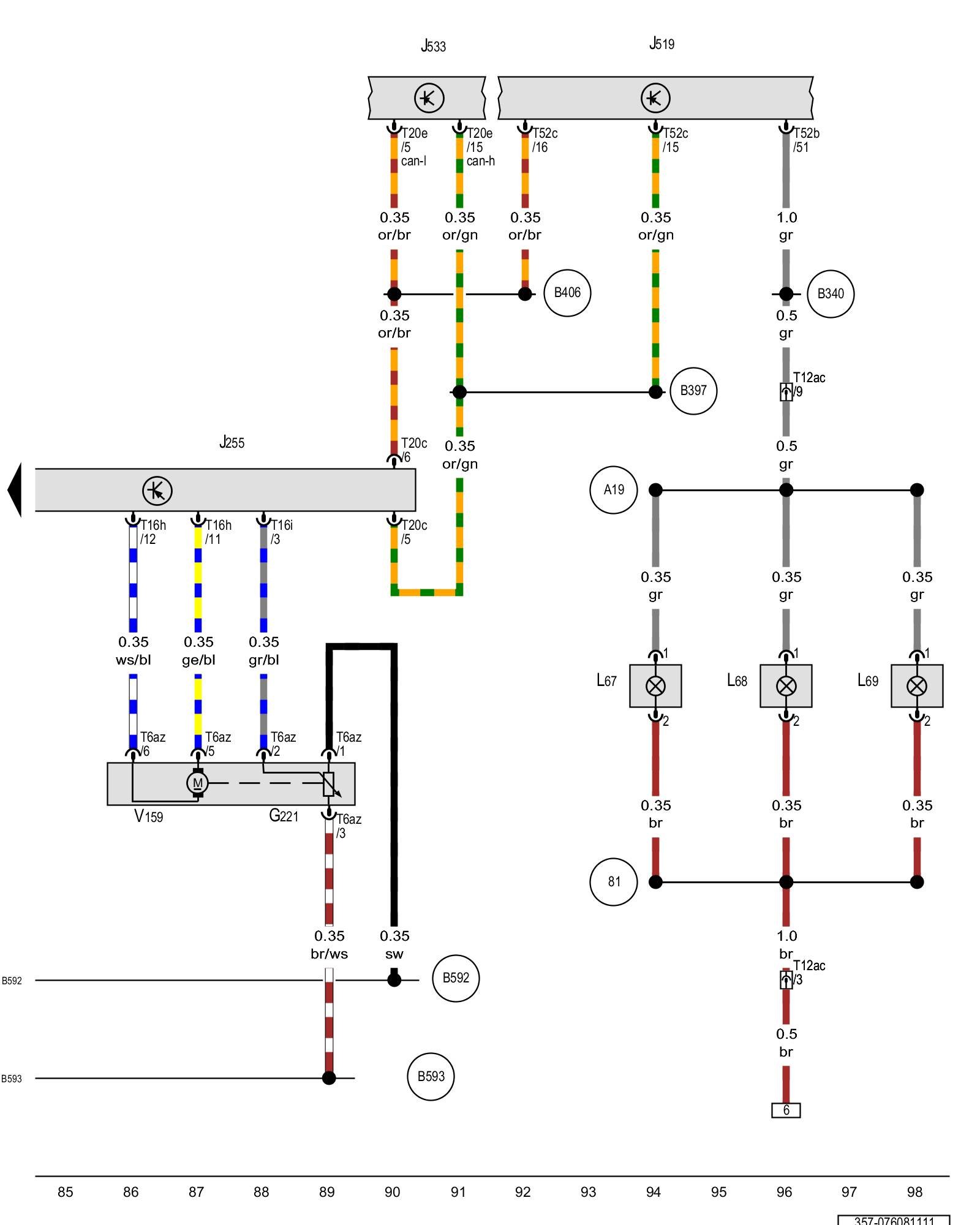

Diagram 76/8 (Tracks 85-98)
IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
Right temperature door potentiometer/actuator, Climatronic control module, Left instrument panel vent illumination bulb, Center instrument panel vent illumination bulb, Right instrument panel vent illumination bulb, Right temperature door motor
ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink
G221 - Right temperature door potentiometer/actuator Climatronic (Automatic Climate Control) System Overview Right Temperature Door Motor -V159- /Potentiometer / Actuator -G221-
J255 - Climatronic control module Control Modules in Interior Climatronic (Automatic Climate Control) Control Module -J255-
J519 - Vehicle electrical system control module Control Modules in Interior
J533 - Data bus on board diagnostic interface Control Modules in Interior
L67 - Left instrument panel vent illumination bulb
L68 - Center instrument panel vent illumination bulb
L69 - Right instrument panel vent illumination bulb
T6az - 6-pin connector
T12ac - 12-pin connector
T16h - 16-pin connector
T16i - 16-pin connector
T20c - 20-pin connector
T20e - 20-pin connector
T52b - 52-pin connector
T52c - 52-pin connector
V159 - Right temperature door motor Climatronic (Automatic Climate Control) System Overview Right Temperature Door Motor -V159- /Potentiometer / Actuator -G221-
(81) - Ground connection 1 (in instrument panel wiring harness)
(A19) - Connection (58d) (in instrument panel wiring harness)
(B340) - Connection 1 (58d) (in main wiring harness)
(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)
(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)
(B592) - Connection 1 (in Climatronic wiring harness)
(B593) - Connection 2 (in Climatronic wiring harness)
Previous Diagram 76/7 (Tracks 71-84)
