Diagram 72/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


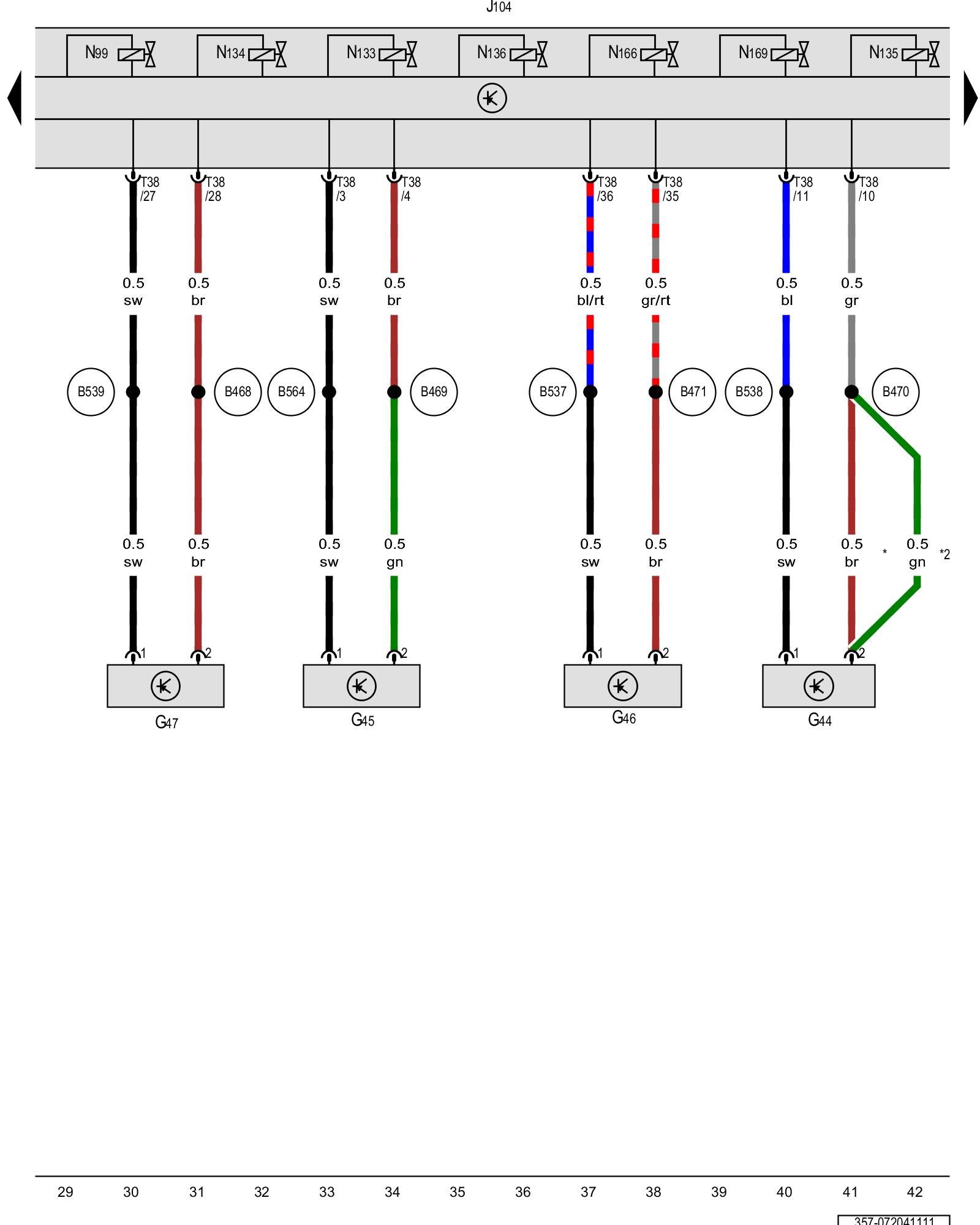

Left front ABS wheel speed sensor, ABS control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G44 - Right rear ABS wheel speed sensor Anti-lock Brake System (ABS) W/ ESP [1][2]Diagrams

G45 - Right front ABS wheel speed sensor Anti-lock Brake System (ABS) W/ ESP [1][2]Diagrams

G46 - Left rear ABS wheel speed sensor Anti-lock Brake System (ABS) W/ ESP [1][2]Diagrams

G47 - Left front ABS wheel speed sensor Anti-lock Brake System (ABS) W/ ESP [1][2]Diagrams

J104 - ABS control module Control Modules in Engine Compartment [1][2]Diagrams

N99 - Right front ABS inlet valve

N133 - Right rear ABS inlet valve

N134 - Left rear ABS inlet valve

N135 - Right rear ABS outlet valve

N136 - Left rear ABS outlet valve

N166 - Right front EDL switch-over valve

N169 - Left front EDL outlet valve

T38 - 38-pin connector

(B468) - Connection 4 (in main wiring harness)

(B469) - Connection 5 (in main wiring harness)

(B470) - Connection 6 (in main wiring harness)

(B471) - Connection 7 (in main wiring harness)

(B537) - Connection 28 (in main wiring harness)

(B538) - Connection 29 (in main wiring harness)

(B539) - Connection 30 (in main wiring harness)

(B564) - Connection 31 (in main wiring harness)

* - Only for vehicles with all wheel drive

*2 - Only for vehicles without all wheel drive

Previous Diagram 72/3 (Tracks 15-28)

Next Diagram 72/5 (Tracks 43-56)
