Diagram 46/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

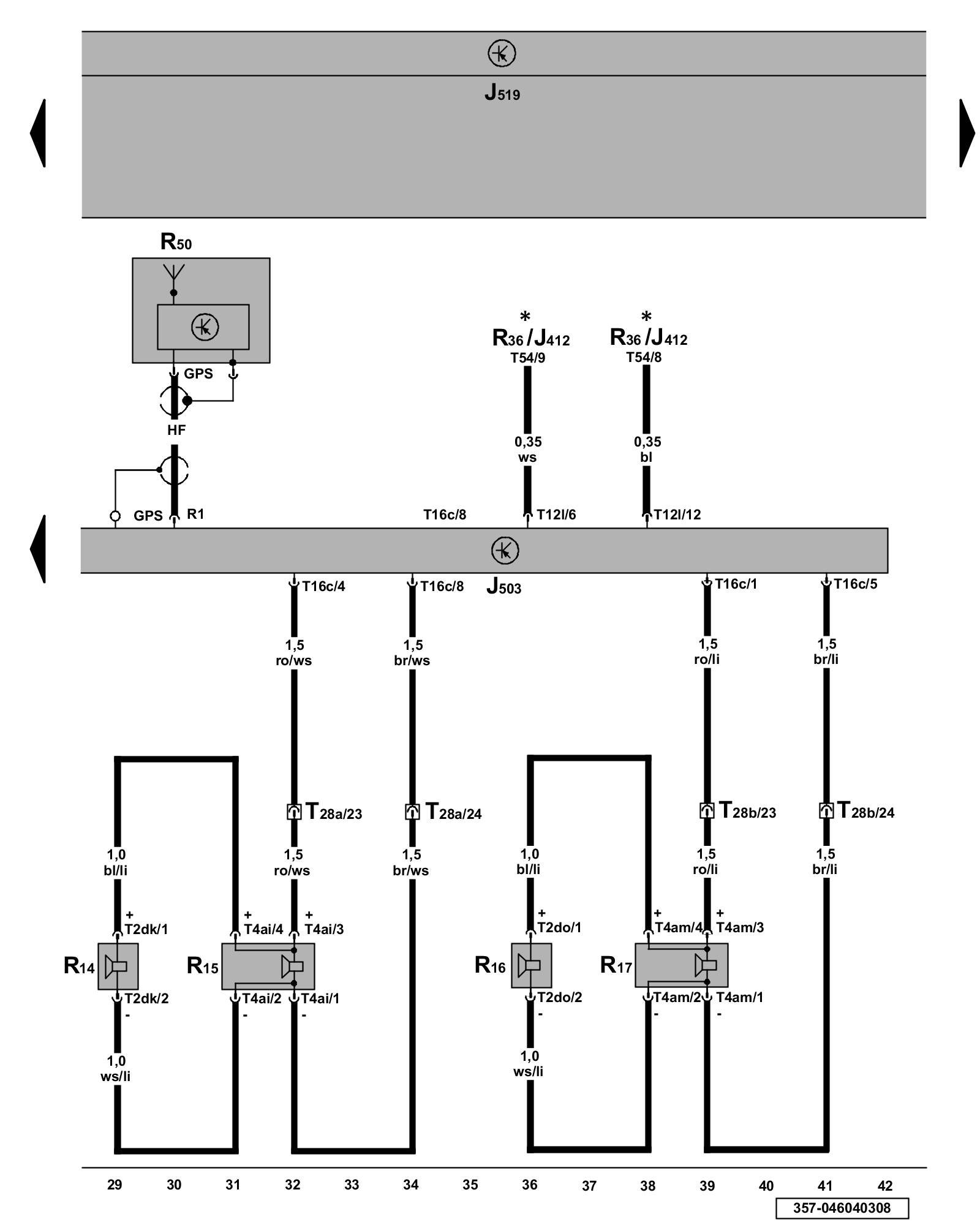

Radio/Navigation Display Control Module, Navigation System Antenna, Left and Right Rear Speaker, Operating Electronics and Telephone Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J412 - Operating Electronics and Telephone Control Module Control Modules in Interior

J503 - Radio/Navigation Display Control Module Locations

J519 - Vehicle Electrical System Control Module Control Modules in Interior

R1 - Antenna Connection

R14 - Left Rear Treble Speaker Locations

R15 - Left Rear Bass Speaker Locations

R16 - Right Rear Treble Speaker Locations

R17 - Right Rear Bass Speaker Locations

R36 - Telephone Transceiver Telephone System, Premium with Bluetooth Overview

R50 - Navigation System Antenna

T2dk - Double Connector

T2do - Double Connector

T4ai - 4-Pin Connector

T4am - 4-Pin Connector

T12l - 12-Pin Connector, green

T16c - 16-Pin Connector

T28a - 28-Pin Connector, connector station B-pillar, left

T28b - 28-Pin Connector, connector station B-pillar, right

T54 - 54-Pin Connector

* - Only models with telephone/ telephone preparation

Previous Diagram 46/3 (Tracks 15-28)

Next Diagram 46/5 (Tracks 43-56)
