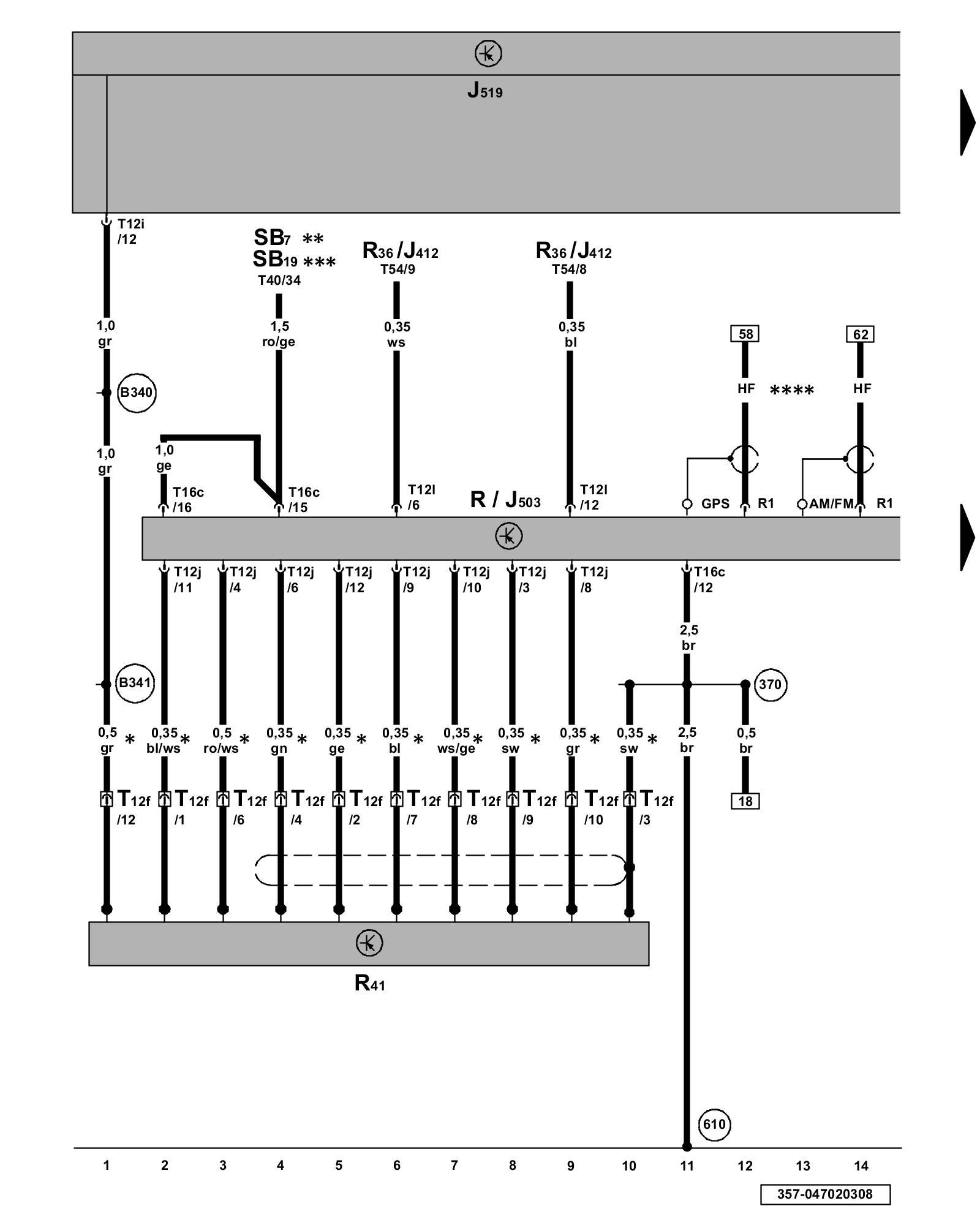

Diagram 47/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Control Module, CD Changer, Operating Electronics and Telephone Control Module, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J412 - Operating Electronics and Telephone Control Module Control Modules in Interior

J503 - Radio/Navigation Display Control Module Locations

J519 - Vehicle Electrical System Control Module Control Modules in Interior

R - Radio

R1 - Antenna Connection

R36 - Telephone Transceiver Telephone System, Premium with Bluetooth Overview

R41 - CD Changer

SB7 - Fuse 7 (on fuse panel B)

SB19 - Fuse 19 (on fuse panel B)

T12f - 12-Pin Connector, near CD changer

T12i - 12-Pin Connector

T12j - 12-Pin Connector, blue

T12l - 12-Pin Connector

T16c - 16-Pin Connector

T40 - 40-Pin Connector

T54 - 54-Pin Connector

(370) - Ground Connection 5 (in main wiring harness)

(610) - Ground Connection (Audio) (under center console, front) Overview Of Ground Connections in Interior

(B340) - Connection 1 (58d) (in main wiring harness)

(B341) - Connection 2 (58d) (in main wiring harness)

* - Only models with CD changer preparation or external CD changer

** - Only models with electronics box Low

*** - Only models with electronics box High

**** - Only models with Navigation System
