Diagram 68/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

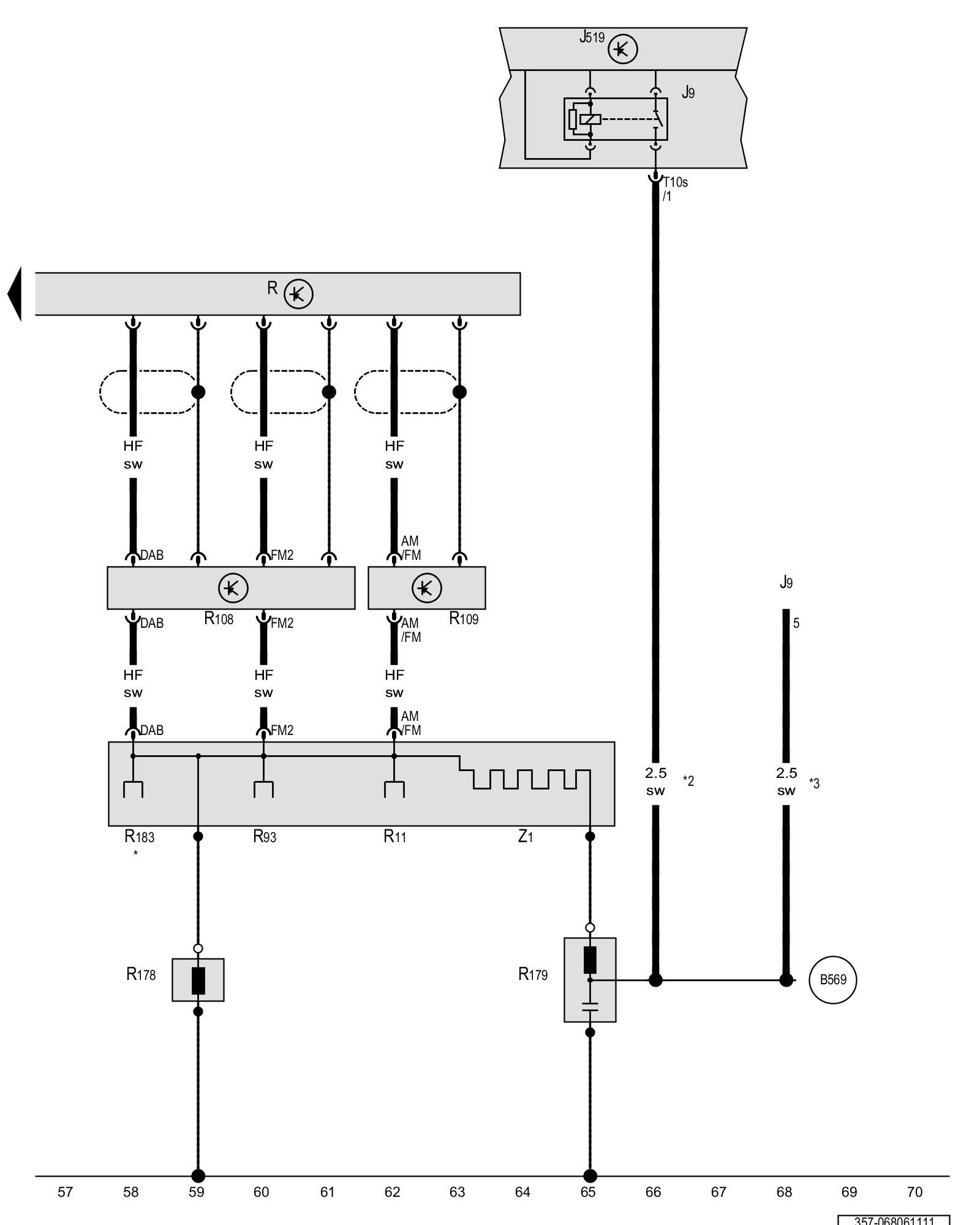

Rear window defogger relay, Radio, Radio antenna 2, FM frequency filter in positive wire





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J9 - Rear window defogger relay Overview Of Relay Carrier

J519 - Vehicle electrical system control module, black Control Modules in Interior

R - Radio

R11 - Antenna Locations

R93 - Radio antenna 2 Locations

R108 - Left antenna module Locations

R109 - Right antenna module Locations

R178 - FM frequency filter in negative wire Locations

R179 - FM frequency filter in positive wire Locations

R183 - Digital radio antenna

T10s - 10-pin connector

Z1 - Rear window defogger

(B569) - Connection 36 (in main wiring harness)

* - Only for vehicles with a digital radio

*2 - Through November 2010

*3 - From November 2010

Previous Diagram 68/5 (Tracks 43-56)
