Diagram 44/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

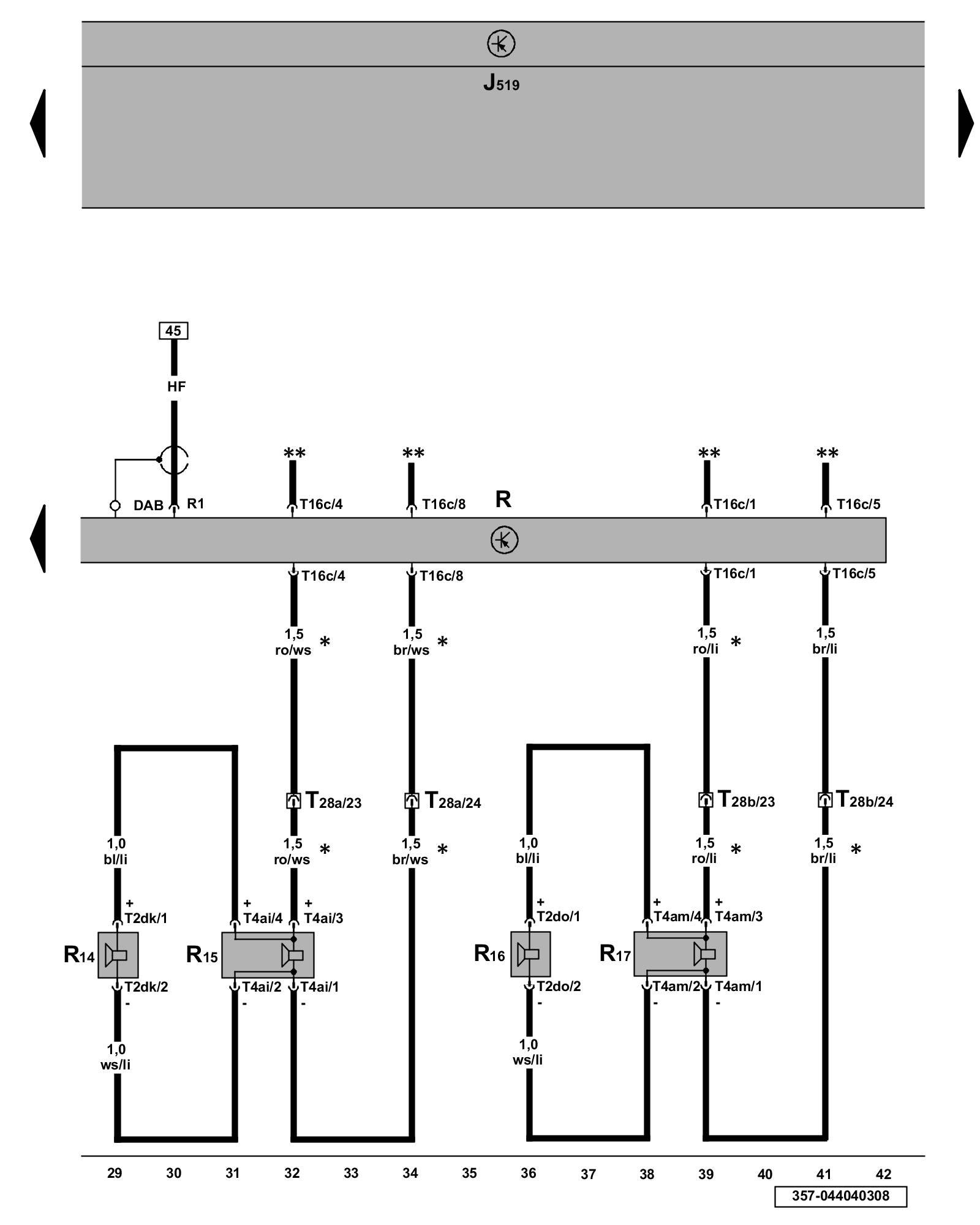

Radio, Left and Right Rear Speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior

R - Radio

R1 - Antenna Connection

R14 - Left Rear Treble Speaker Locations

R15 - Left Rear Bass Speaker Locations

R16 - Right Rear Treble Speaker Locations

R17 - Right Rear Bass Speaker Locations

T2dk - Double Connector

T2do - Double Connector

T4ai - 4-Pin Connector

T4am - 4-Pin Connector

T16c - 16-Pin Connector

T28a - 28-Pin Connector, connector station B-pillar, left

T28b - 28-Pin Connector, connector station B-pillar, right

* - Only models without sound system

** - Only models with sound system => Wiring Diagrams sound system
