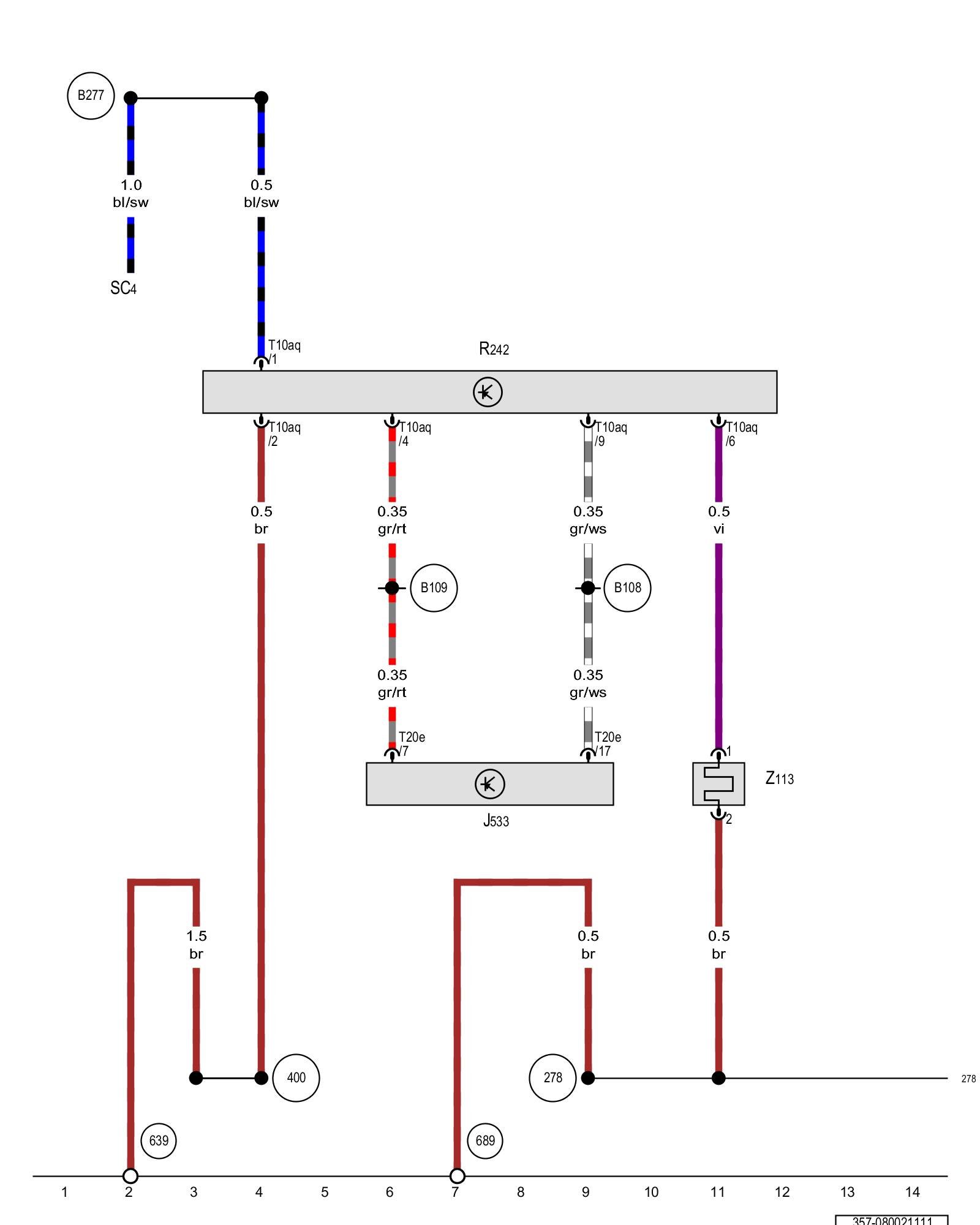

Diagram 80/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data bus on board diagnostic interface, Driver assistance systems front camera, Window defogger for front sensor system





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J533 - Data bus on board diagnostic interface Control Modules in Interior

R242 - Driver assistance systems front camera

SC4 - Fuse 4 (on fuse panel C)

T10aq - 10-pin connector

T20e - 20-pin connector

Z113 - Window defogger for front sensor system

(278) - Ground connection 4 (in interior wiring harness)

(400) - Ground connection 35 (in main wiring harness)

(639) - Ground connection on left A-pillar Overview Of Ground Connections in Interior

(689) - Ground connection on roof, center front Overview Of Ground Connections in Interior

(B108) - CAN bus extended high connection 1 (in main wiring harness)

(B109) - CAN bus extended low connection 1 (in main wiring harness)

(B277) - Positive connection 1 (15a) (in main wiring harness)

Next Diagram 80/3 (Tracks 15-28)
