Multifunction Transmission Range Switch -F125-






Transmission Systems Connector Views

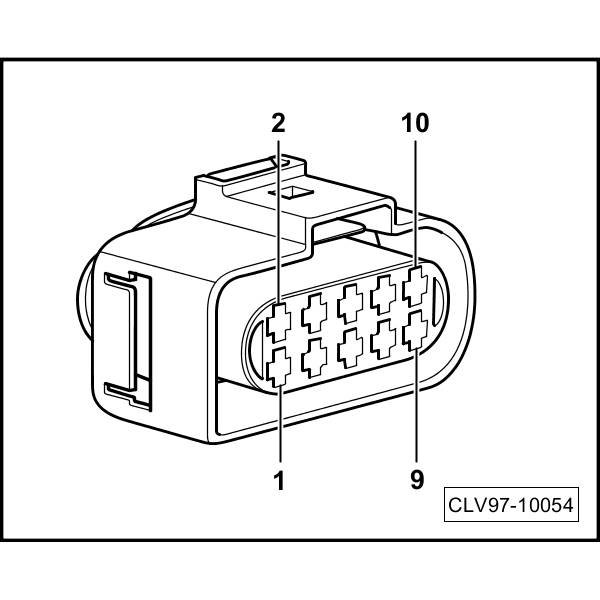

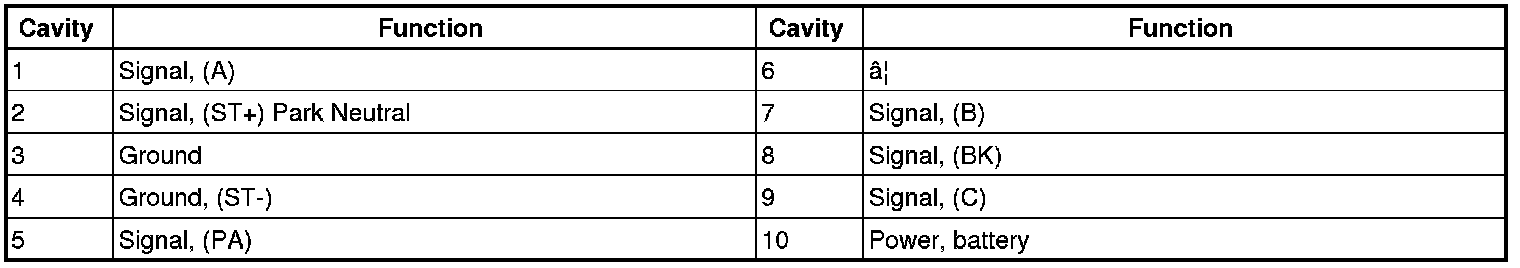

Multifunction transmission range switch -F125-



09G, 09M Transmissions
