Steering Control Module






Steering System - Connector Views

Power steering control module -J500-

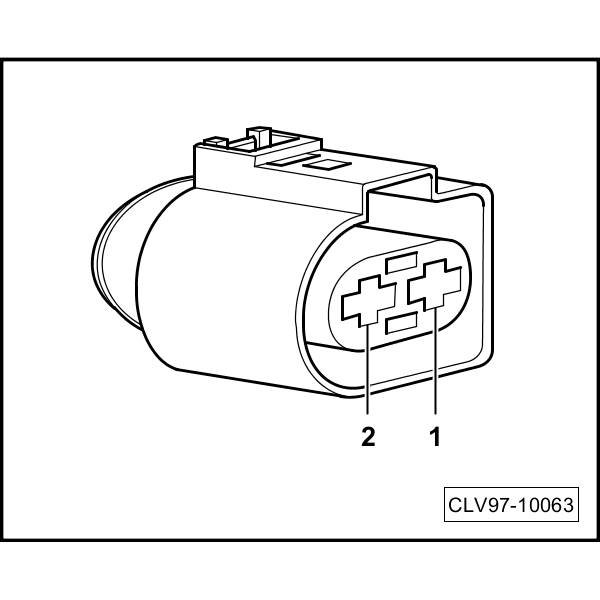

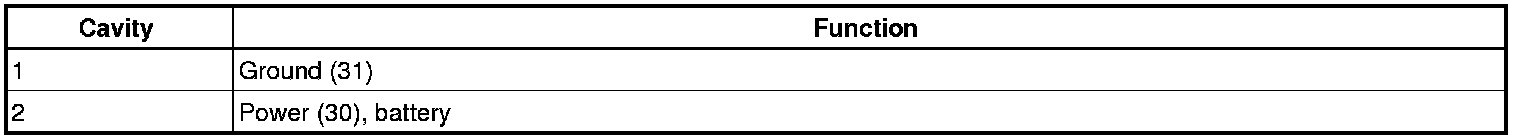

2 - Pin

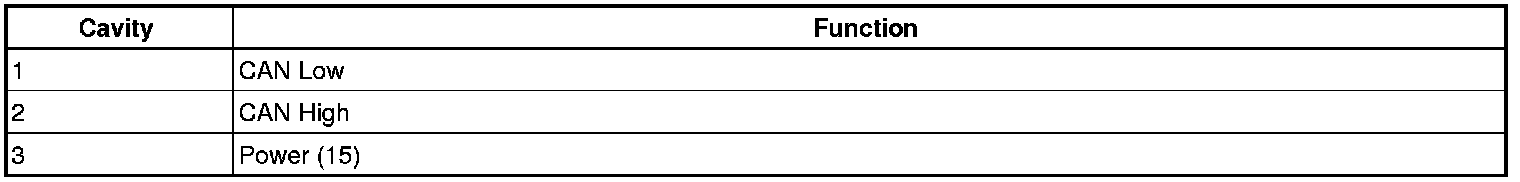

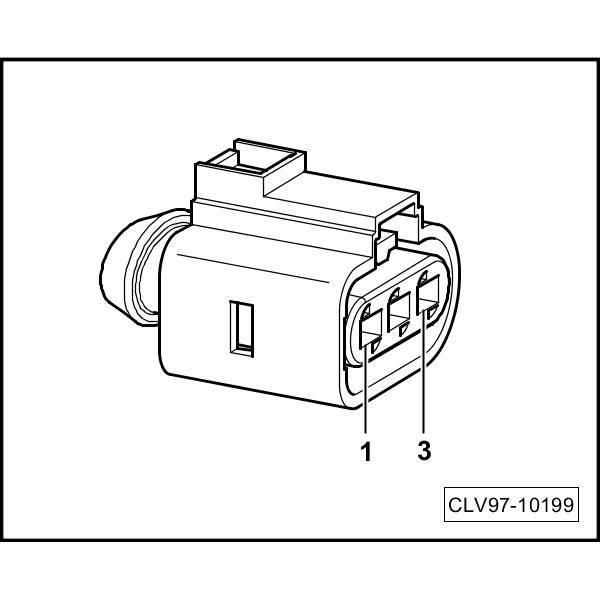

3 - Pin

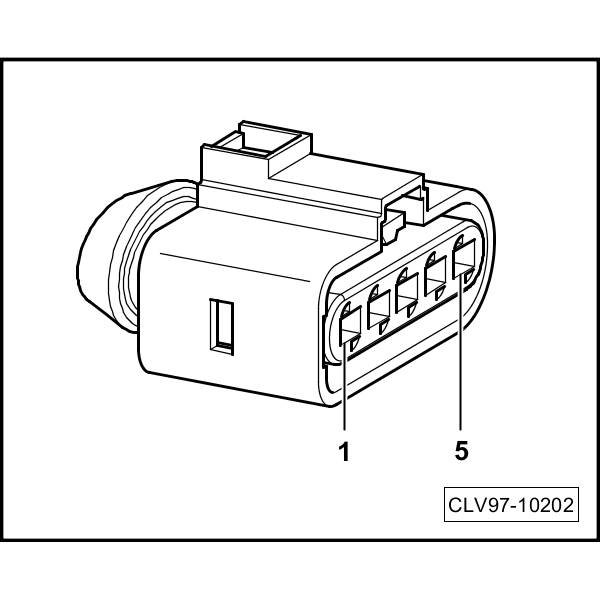

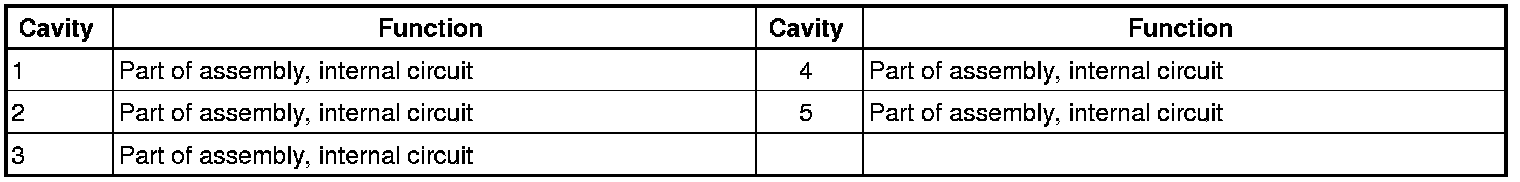

5 - Pin
