Home >> Volkswagen >> 2012 >> CC (357) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram >> Driver Seat adjustment Control Module -J810-

Driver Seat adjustment Control Module -J810-






Comfort Systems - Connector Views

Driver seat adjustment control module -J810-

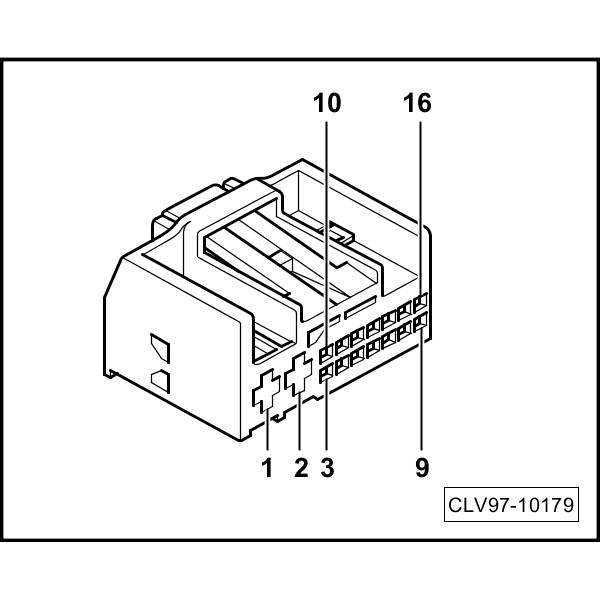

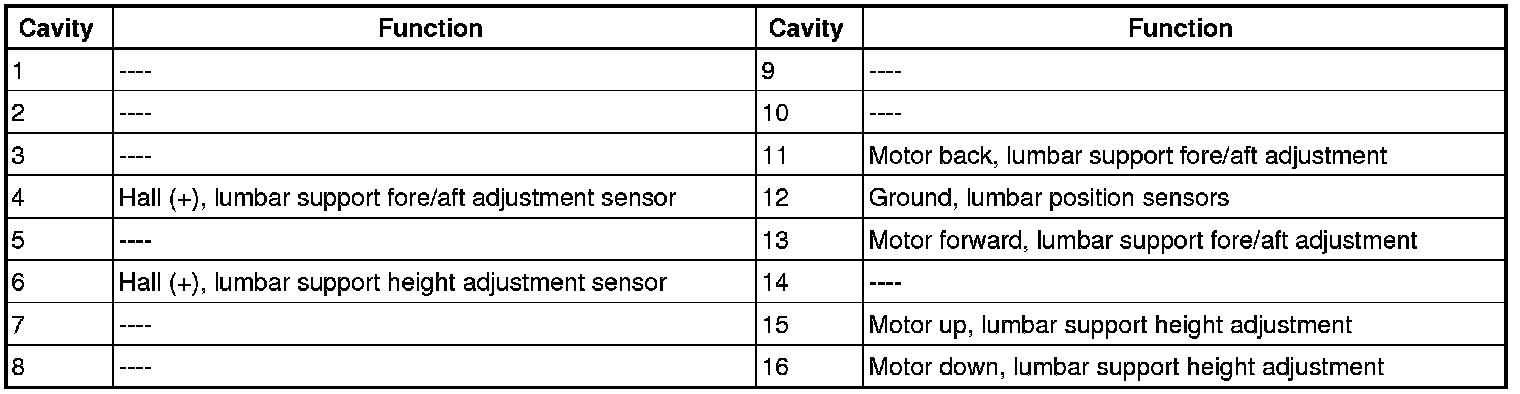

16-pin Connector

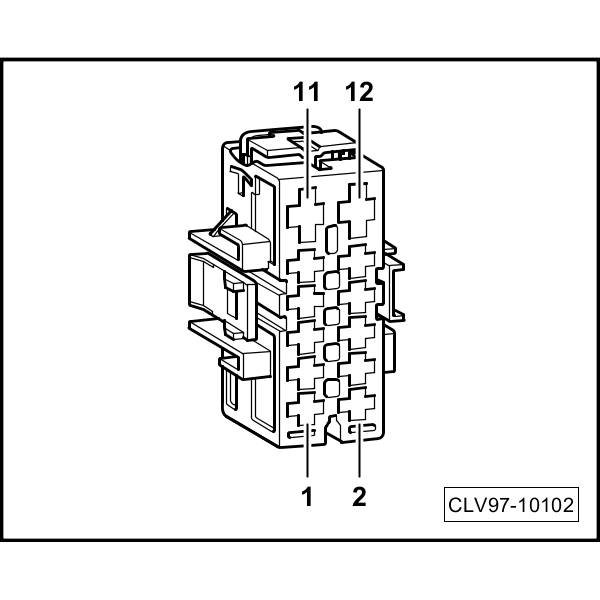

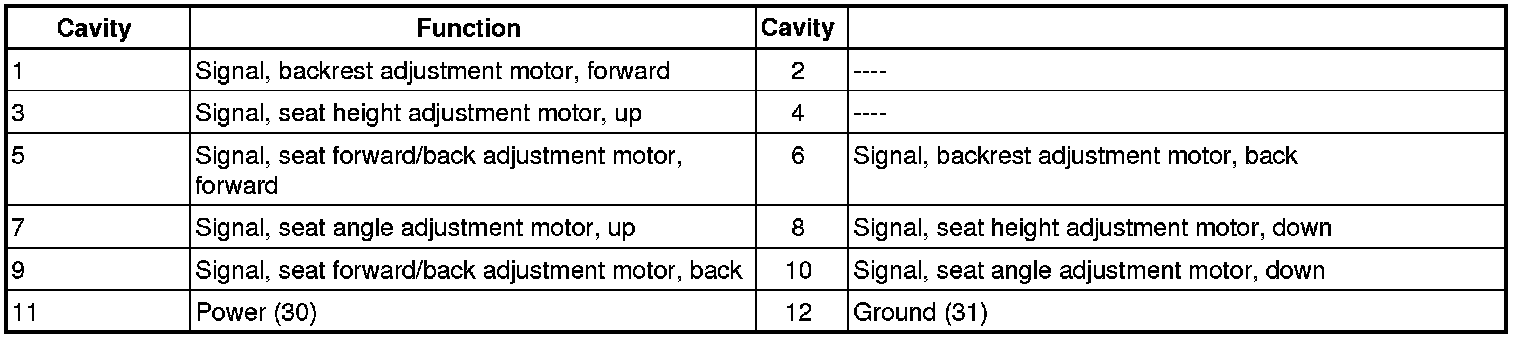

12-pin Connector

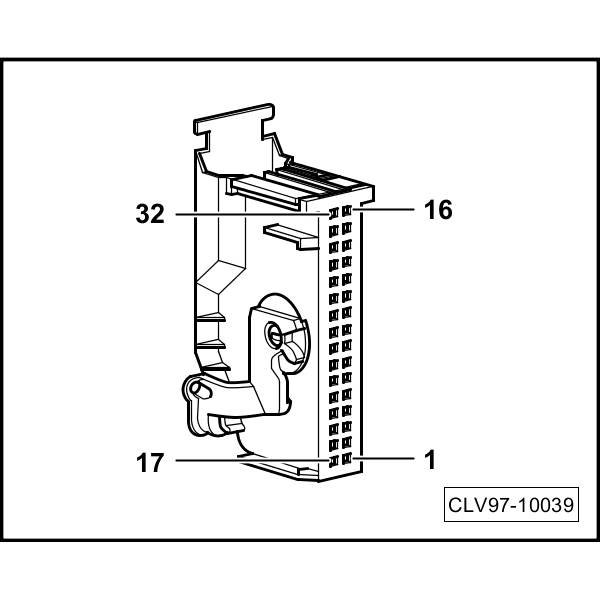

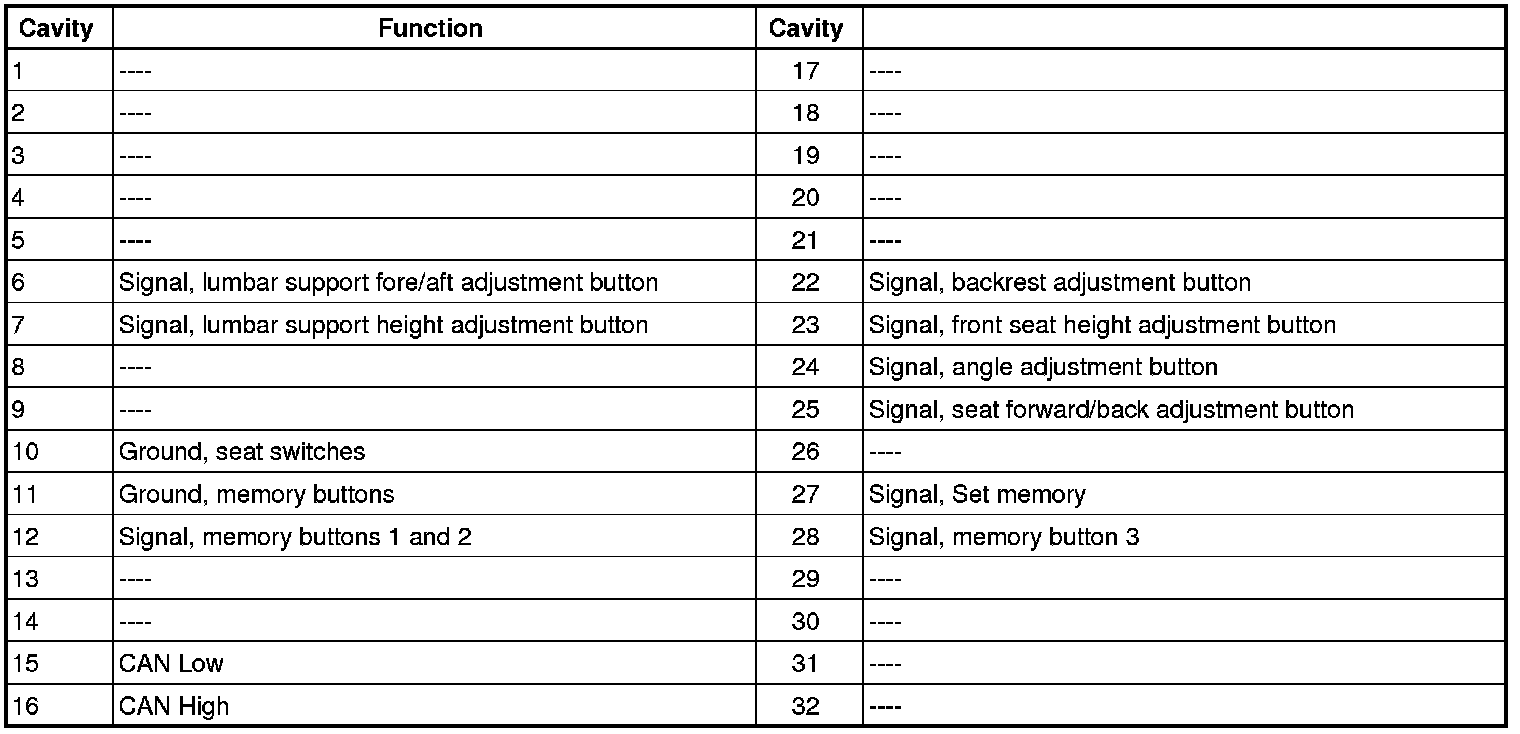

32-pin Connector

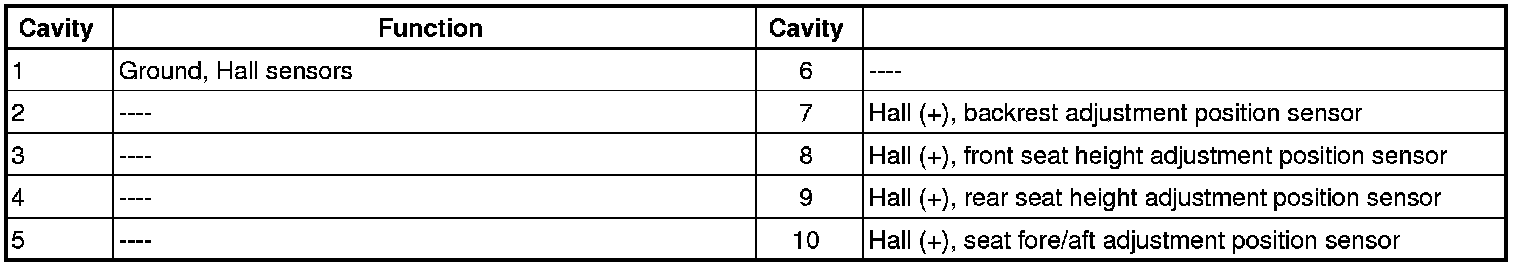

10-pin Connector
