Seat forward/back adjustment Motor and Position Sensor -V288- / -G441-






Comfort Systems - Connector Views

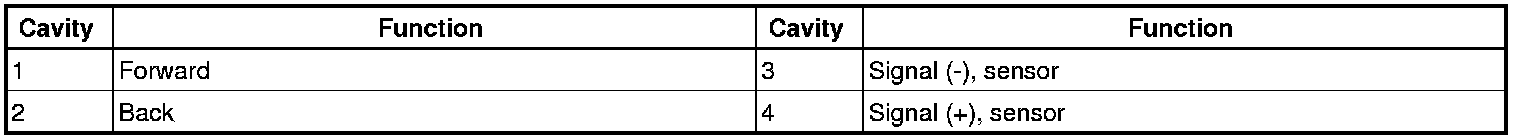

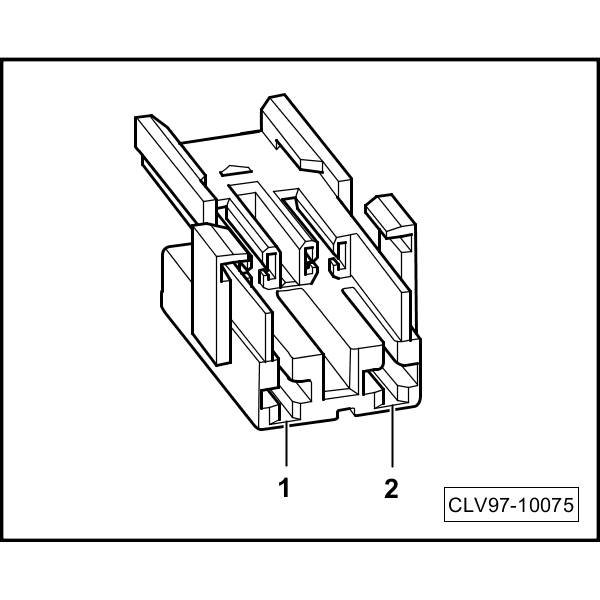

Seat forward/back adjustment motor and position sensor -V288- / -G441-
