Seat Occupant Classification Module - Air Bag
Seat Occupant Classification Module - Air Bag
Airbag Systems - Connector Views

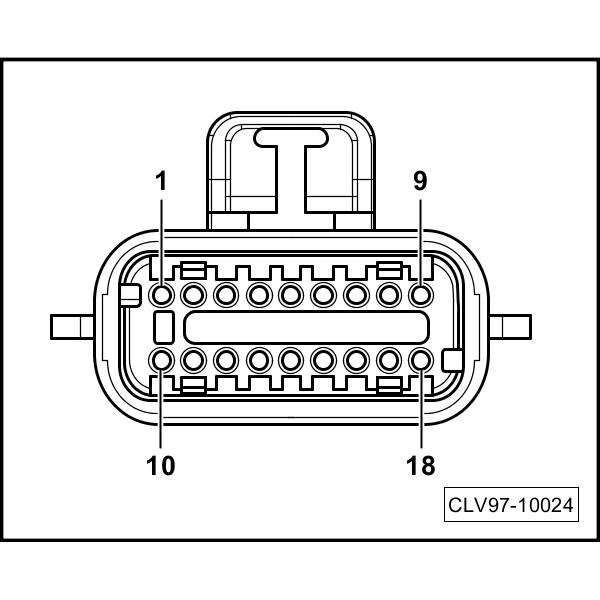

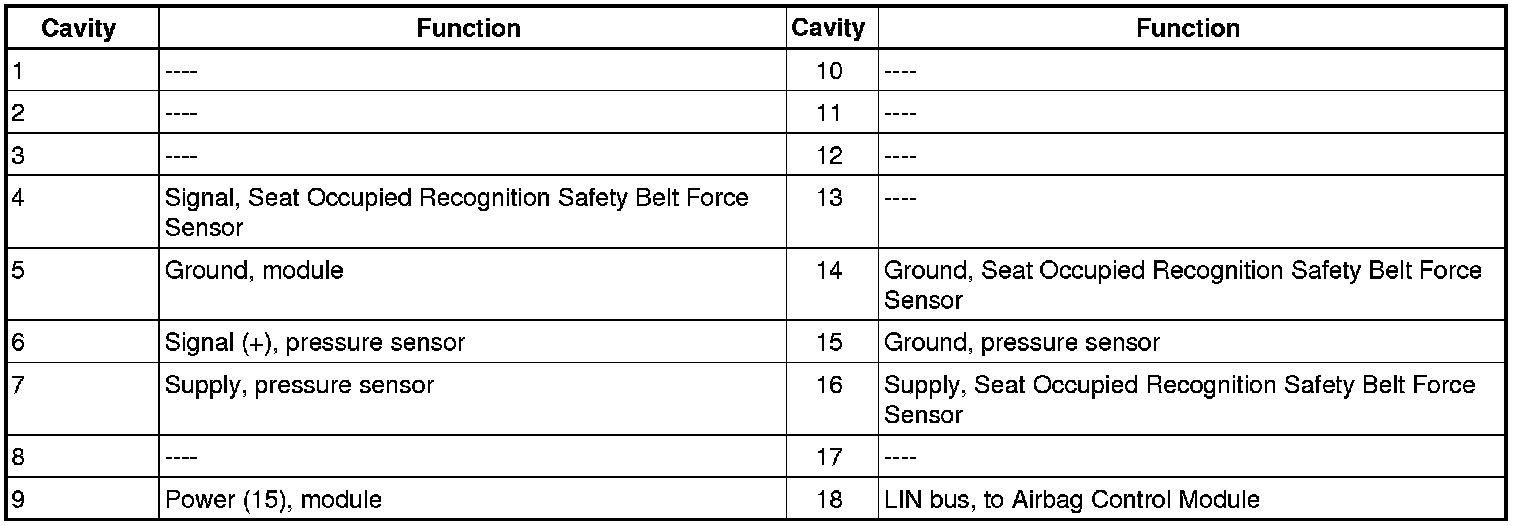

Passenger occupant detection system control module -J706-
