Power Window Control Head in Driver Door -E318- / -E710- / -E712- / -E714- / -E715- /






Door Control Units - Connector Views

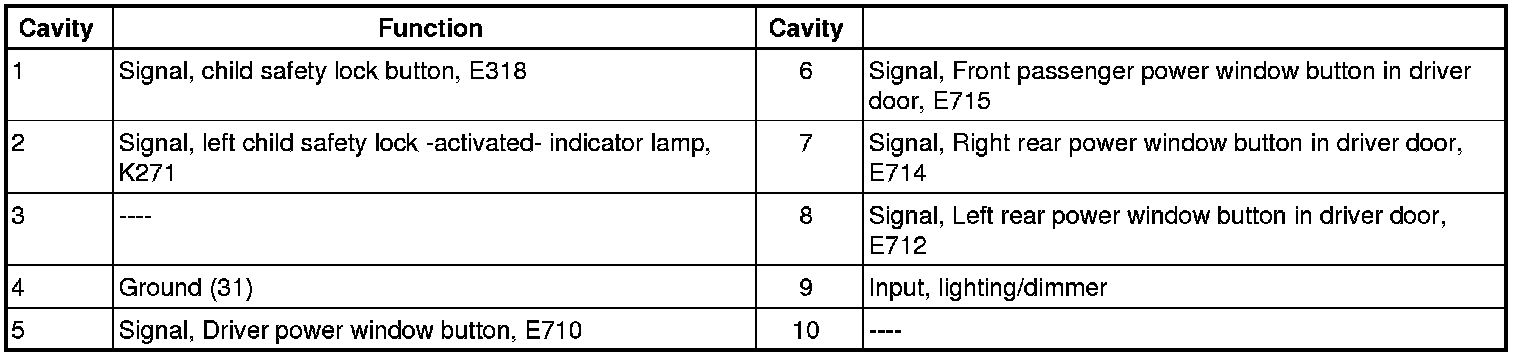

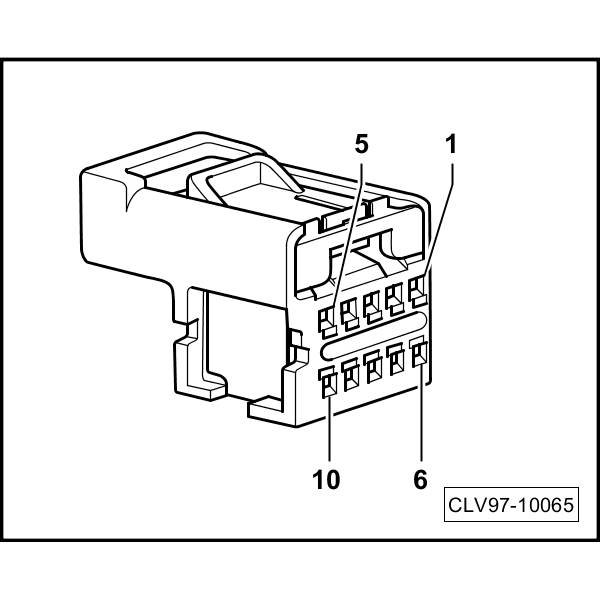

Power window control head in driver door -E318- / -E710- / -E712- / -E714- / -E715- /
