Parking Assist Switch
>>
Parallel Parking assistance Button -E581-
Parallel Parking assistance Button -E581-
Parking Systems - Connector Views

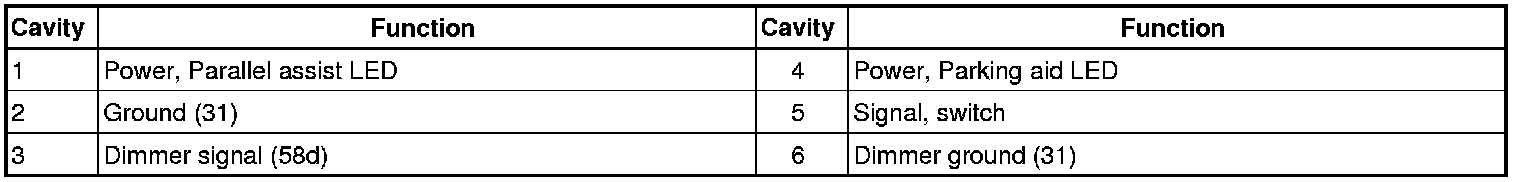

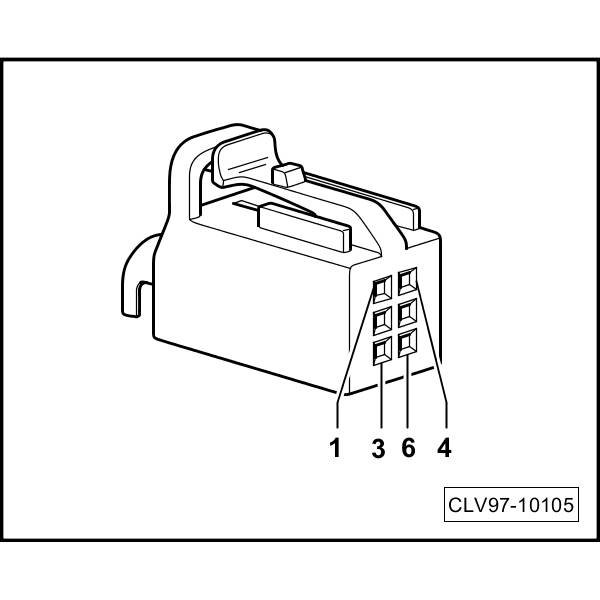

Parallel parking assistance button -E581-
