Parking Aid Control Module -J446-






Parking Systems - Connector Views

Parking aid control module -J446-

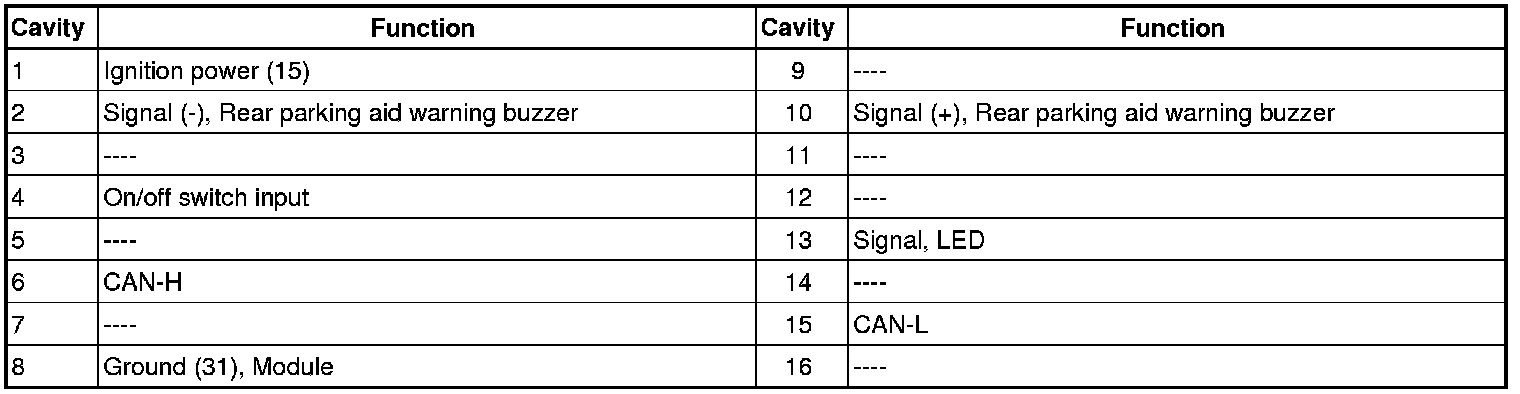

16 Pin Connector

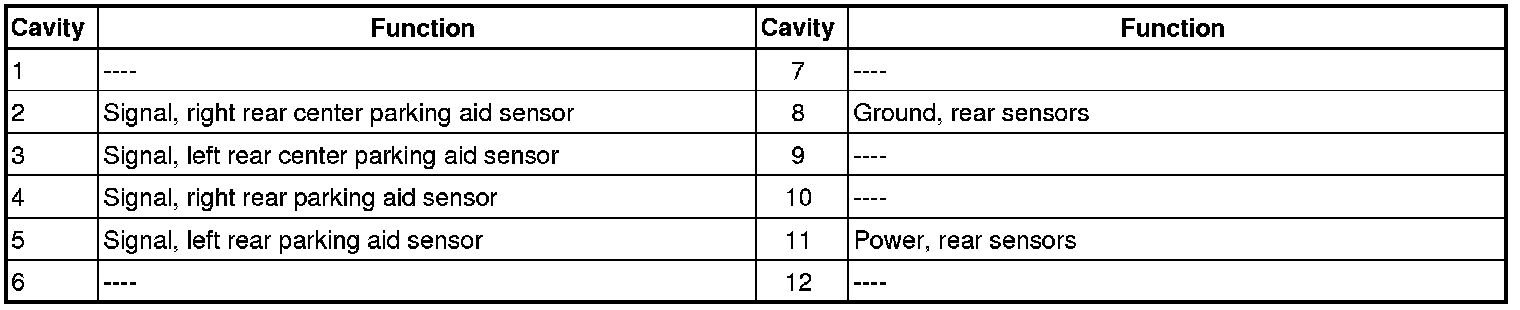

12 Pin Connector (12a)

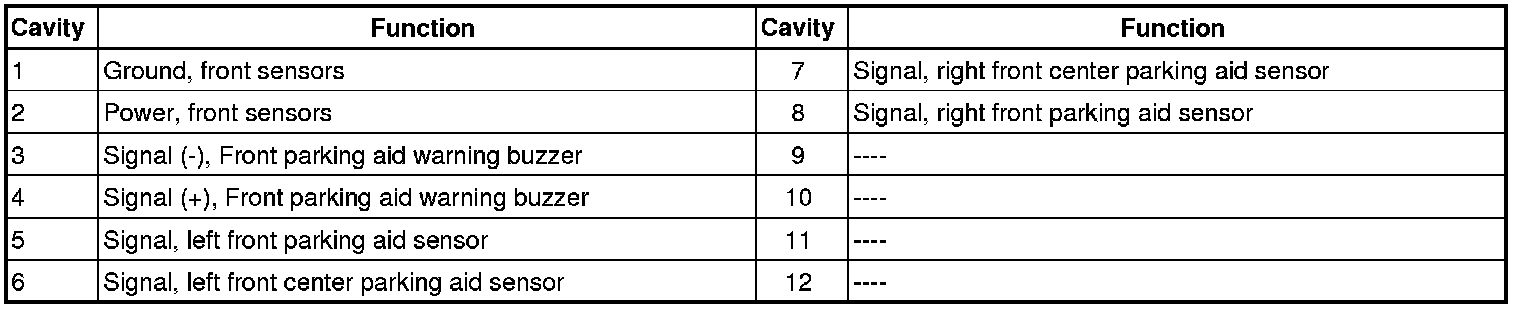

12 Pin Connector (12)
