CC (357) L4-2.0L Turbo (CCTA)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
System Diagram
Door Control Units - Connector Views

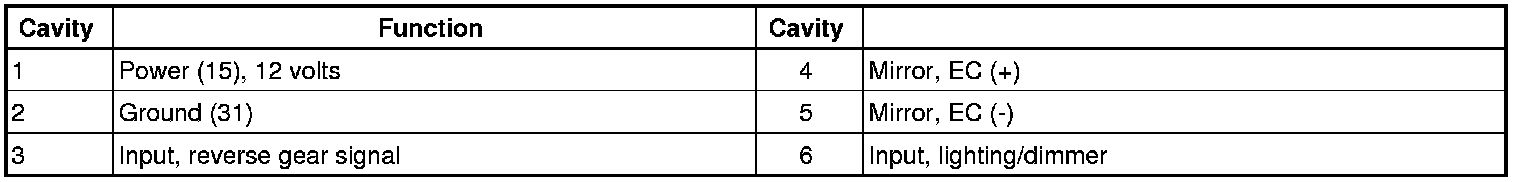

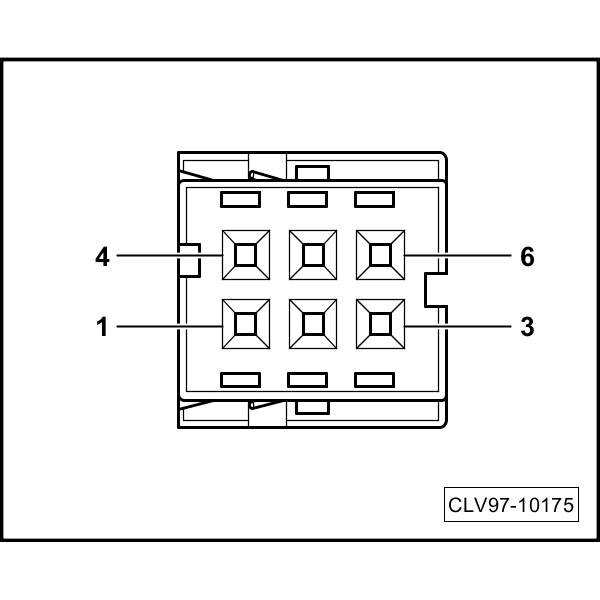

Automatic dimming interior rearview mirror -Y7-
