Transfer Fuel Pump -G6- / Fuel Level Sensor -G-

Engine Management System - Connector Views

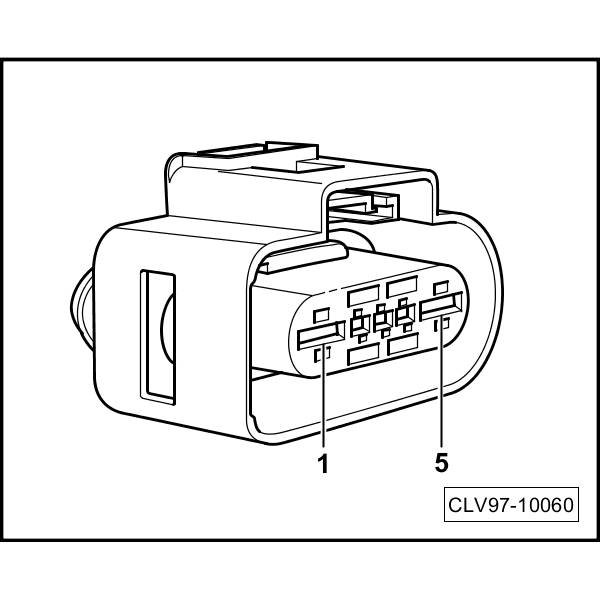

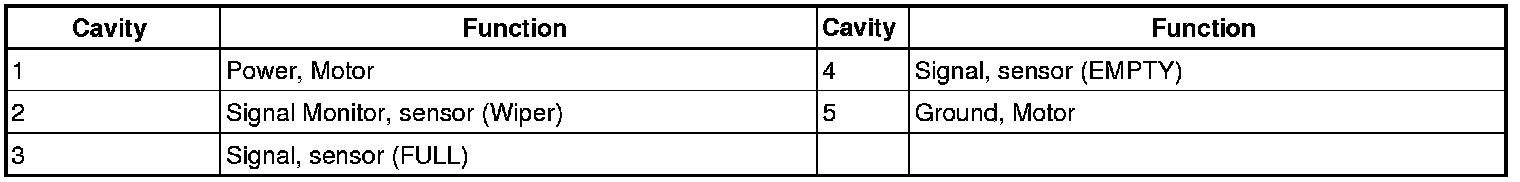

Transfer fuel pump -G6- / Fuel level sensor -G-

All engines
