Climatronic Control Module J255 Pin Assignment, Passat from MY 06
Climatronic Control Module J255 Pin Assignment, Passat from MY 06
Special tools, testers and auxiliary items required
• Test Adapter (V.A.G 1598/42)
• Adapter Cable (V.A.G 1598/47)
• Template (V.A.G 1598/47-2)

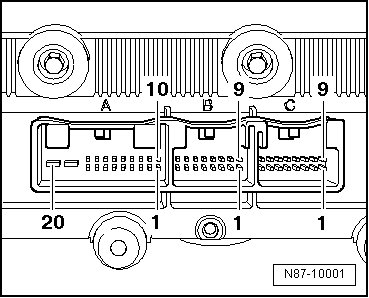

20-pin Harness Connector, Connector Housing - A -, in Wiring Diagram T20c
1 Sunlight Photo Sensor 2 (G134) or Sunlight Photo Sensor (G107) , signal
2 High Pressure Sensor (G65)
3 Sunlight Photo Sensor 2 (G134) or Sunlight Photo Sensor (G107) , signal
4 From calendar week 22/07 the Air Quality Sensor (G238) is discontinued; from November 2007 for the North American markets.
5 CAN bus High
6 CAN bus Low
7 Indirect Ventilation Door Motor (V213)
8 Indirect Ventilation Door Motor (V213)
9 + 5V for Sunlight Photo Sensor 2 (G134) or Sunlight Photo Sensor (G107)
10 Heated driver seat temperature sensor (G59) or front seat heating control module (J774) (optional)
11 Front Passenger Heated Seat Temperature Sensor (G60) Or Front Seat Heating Control Module (J774) (optional)
12 Terminal 75 (optional)
13 Left Vent Temperature Sensor (G150)
14 Right Vent Temperature Sensor (G151)
15 Indirect Ventilation Door Motor Position Sensor (G330)
16 Terminal 30a/without auxiliary heater terminal 15
17 Signal ground for Sunlight Photo Sensor (3241) (G107) , Sunlight Photo Sensor 2 (G134) , Left Vent Temperature Sensor (G150) , Right Vent Temperature Sensor (G151) and Indirect Ventilation Door Motor (V213)
18 A/C Compressor Regulator Valve (N280)
19 Terminal 31
20 Terminal 30a/without auxiliary heater terminal 15
16-pin Harness Connector, Connector Housing - B -, in Wiring Diagram T16i
1 + 5V for motors
2 Left Temperature Door Potentiometer/Actuator (G220)
3 Right Temperature Door Potentiometer/Actuator (G221)
4 Defroster Door Motor Position Sensor (G135)
5 Central Door Motor Position Sensor (G112)
6 Recirculation Door Motor Position Sensor (G143)
7 Back Pressure Door Motor Position Sensor (G113). From 28 May 2007 Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor (G644).
8 Left Footwell Vent Temperature Sensor (G261)
9 Right Footwell Vent Temperature Sensor (G262)
11 From calendar week 44/07 Evaporator Temperature Sensor (G308) through calendar week 43/07 Evaporator Vent Temperature Sensor (G263)
14 Signal Ground (GND) potentiometer
16-pin Harness Connector, Connector Housing - C -, in Wiring Diagram T16h
1 Left Temperature Door Motor (V158) , cold
2 Left Temperature Door Motor (V158) , warm
3 Defroster Door Motor (V107) , closed
4 Defroster Door Motor (V107) , open
5 Central Air Door Motor (V70) , upper body outlet
6 Central Air Door Motor (V70) , footwell
7 Recirculation Door Motor (V113)
8 Recirculation Door Motor (V113)
9 Vehicles through 04.07 Fresh Air/Recirculating Air/Back Pressure Door Motor (V425) ; from 05.07 Airflow Door Motor (V71) , open
10 Vehicles through 04.07 Fresh Air/Recirculating Air/Back Pressure Door Motor (V425) ; from 05.07 Airflow Door Motor (V71). closed
11 Right Temperature Door Motor (V159) , cold
12 Right Temperature Door Motor (V159) , warm
15 Fresh Air Blower Control Module (J126)
16 Control Module For Fresh Air Blower (J126) , signal
