CC (357) L4-2.0L Turbo (CCTA)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Collision Avoidance Module
Collision Avoidance Module
Adaptive Cruise Control - Connector Views

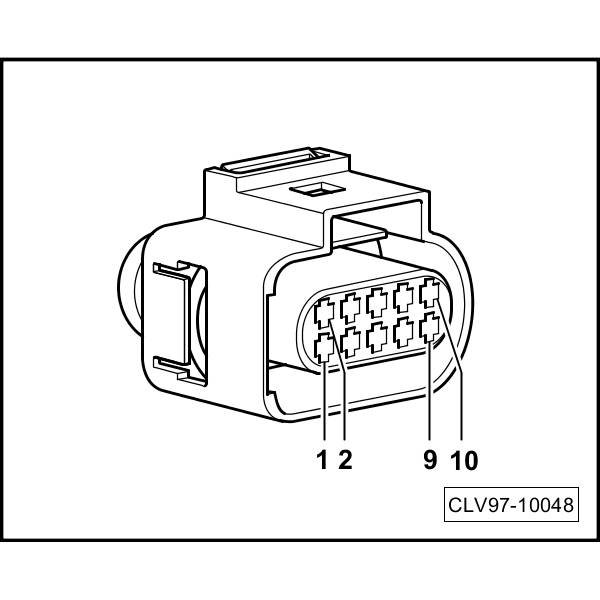

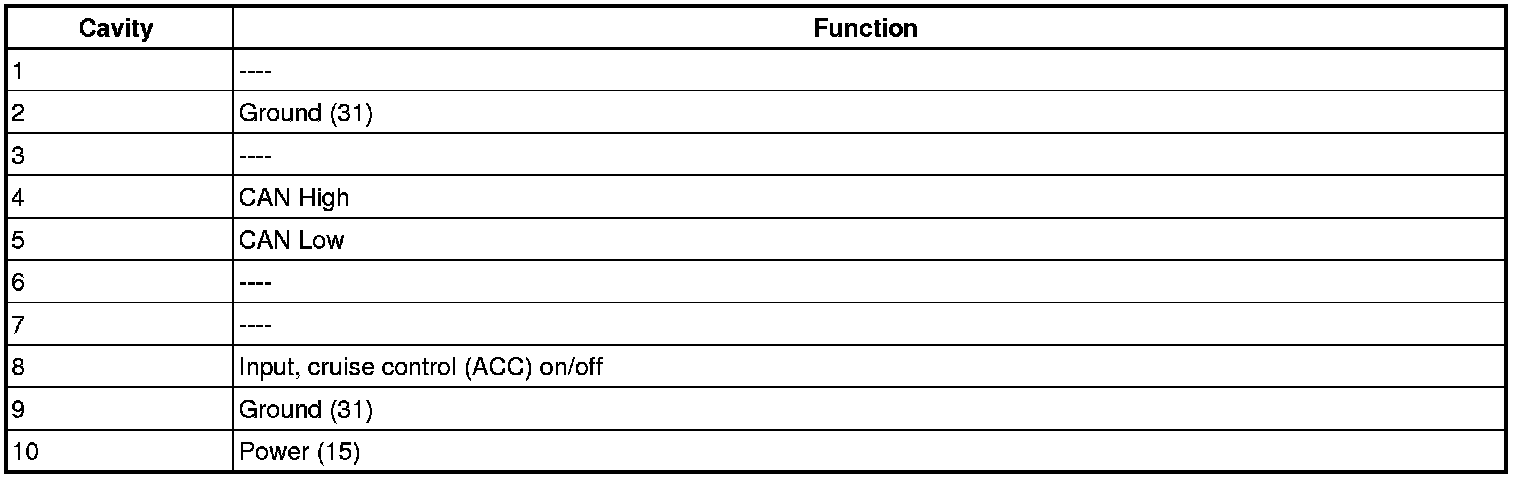

Distance regulation control module -J428-
