Left Temperature Door Motor -V158- /Potentiometer / Actuator -G220-






Climate/Climatronic Systems - Connector Views

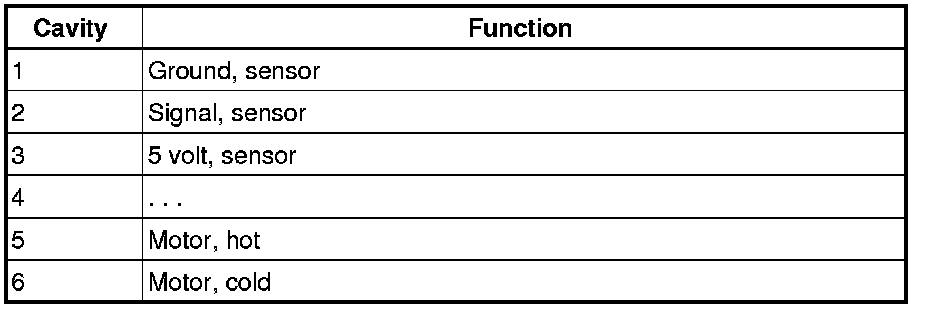

Left temperature door motor -V158- /Potentiometer/actuator -G220-



Climatronic
