Vacuum Pump: Service and Repair

Vacuum Pump

Removing

- Remove the engine cover. Refer to => [ Engine Cover ] Engine Cover.

- Remove the air filter housing. Refer to => [ Air Filter Housing ] Air Filter Housing.

- Remove the high pressure pump. Refer to => [ High Pressure Pump ] High Pressure Pump.

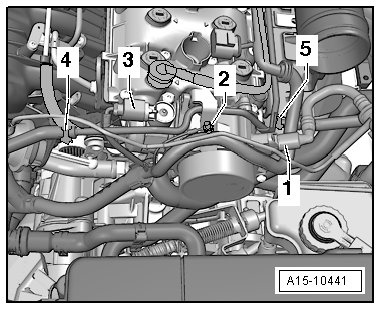

- Remove the nut - 3 - and ground wire (GND) and remove the bolt - 4 -.






- Disconnect the vacuum hose - 1 - from the vacuum pump.

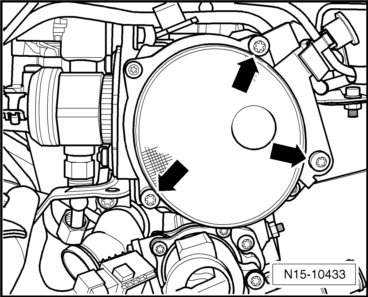

- Remove the bolts - arrows - and remove the vacuum pump.






• Do not disassemble the vacuum pump.

Installing

• For the correct tightening specifications, refer to => [ Cylinder Head Overview ] Cylinder Head Overview.

Installation is the reverse of removal, noting the following:

- Clean the sealing surfaces.

- Install the seal on the vacuum pump, install 2 bolts and then mount it on the cylinder head.
