Parking Brake Component Location Overview

Parking Brake Component Location Overview

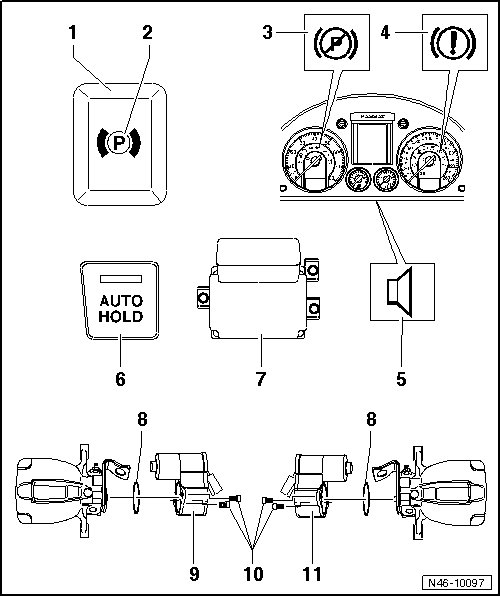

Electromechanical Parking Brake






1 Electromechanical Parking Brake Button (E538)

• Component location: In the instrument panel, next to the light switch

2 Electromechanical Parking Brake Indicator Lamp (K213)

• Component location: Inside the electromechanical parking brake button (E538)

3 Electric Park/Hand Brake Malfunction Indicator Lamp (K214)

• Component location: Inside the instrument cluster

4 Brake System Indicator Lamp (K118)

• Component location: Inside the instrument cluster

5 Acoustic Signal

6 -AUTO HOLD- Button (E540)

• With -AUTO HOLD- indicator lamp (K237)

• Component location: Inside center console

7 Electromechanical Parking Brake Control Module (J540) and ESP Sensor Unit (G419)

• Installed together in one housing

• Removing and installing, refer to => [ Control Module ] Control Module

8 Seal

9 Right Parking Brake Motor (V283)

• Component location: On right rear brake caliper

• Removing and installing, refer to => [ Parking Brake Motor ] Parking Brake Motor

10 Inner TORX(R) Bolt

• 12 Nm

11 Left Parking Brake Motor (V282)

• Component location: On left rear brake caliper

• Removing and installing, refer to => [ Parking Brake Motor ] Parking Brake Motor
