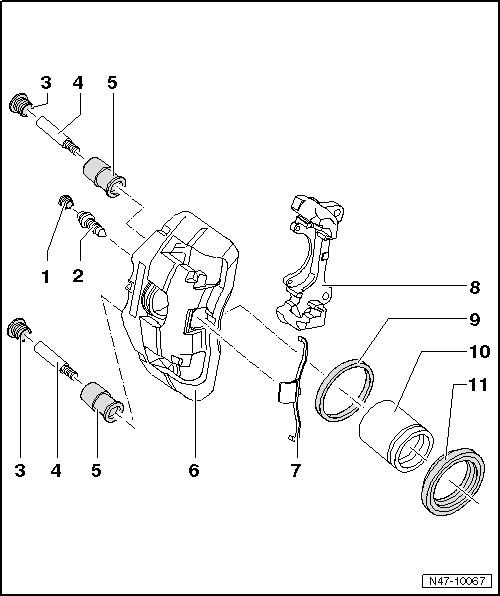

Brake Caliper FNR-G Overview

Brake Caliper FNR-G Overview

• Install complete repair kit when servicing.

• Only use mineral spirits to clean brake parts.

• Apply a thin coat of assembly paste G 052 150 A2 to brake cylinders, pistons and seals.






1 - Dust Cap

• Install onto bleeder valve

2 - Bleeder Valve

• 12 Nm

• Apply a thin coat of assembly paste G 052 150 A2 to the threads before screwing in.

3 - Caps

• Insert in bushing

4 - Guide Pins

• 30 Nm

5 - Bearing Bushing

• Insert in brake caliper

6 - Brake Caliper

• Must not be separated from each other

7 - Spring

• Insert in brake pad retaining spring and press below brake carrier

8 - Brake Carrier

• Bolt to brake caliper

9 - Seal

• Removing and installing, refer to => [ Piston, FNR-G Caliper ] Piston, FNR-G Caliper

10 - Pistons

• Removing and installing, refer to => [ Piston, FNR-G Caliper ] Piston, FNR-G Caliper

• Apply thin coat of assembly paste G 052 150 A2 to piston before inserting.

11 - Cap

• Removing and installing, refer to => [ Piston, FNR-G Caliper ] Piston, FNR-G Caliper

• Do not damage when installing piston.
