Brake Pedal Overview

Brake Pedal Overview

The path of the brake pedal must not be shortened via extra floor mats.

Before installing, lubricate all mounting points with grease, part no. G 000 602.

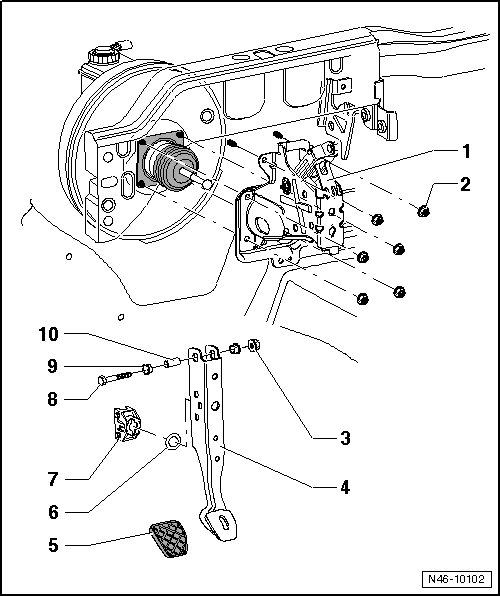

1 Bracket

2 Self-Locking Nut

• 25 Nm

3 Self-Locking Nut

• 25 Nm

4 Brake Pedal

• Connect the brake pedal to the push rod for brake booster. Refer to => [ Brake Pedal, Attaching to Brake Booster ] Brake Pedal, Attaching to Brake Booster.

5 Cover

6 Bearing Shell

7 Mount

• For the ball head on the brake booster push rod

8 Bolt

9 Bearing Bushing

10 Bearing Pin
