Fixed Rear Backrest Cover and Cushion, Passat CC from MY 2009 and CC from MY 2010

Fixed Rear Backrest Cover and Cushion, Passat CC from MY 2009 and CC from MY 2010

Removing

- Remove the luggage compartment carpet.

- Remove the fixed rear seat backrest, Passat CC from the MY 2009 and CC from MY 2010, refer to=> [ Fixed Rear Seat Backrest, Passat CC from MY 2009 and CC from MY 2010 ] Fixed Rear Seat Backrest, Passat CC from MY 2009 and CC from MY 2010

- Press the button in head rest guide and remove the head rest from backrest.

- Remove center armrest.=> [ Center Armrest ] Center Armrest

- Pull headrest guide - 4 - upward out of headrest tube - 2 -.

- Remove center armrest.=> [ Center Armrest ] Center Armrest

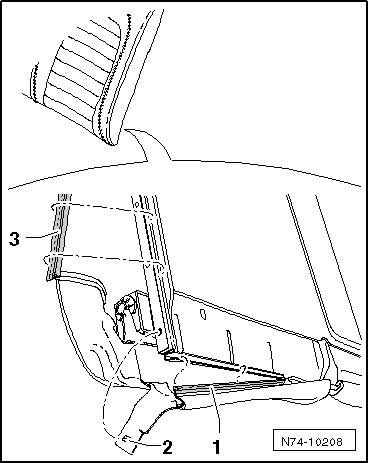

- Pry clamping profile - 1 - out of mounts in backrest using a screwdriver.






- Remove the clip - 2 - from backrest frame.

- Pry clamping profile - 3 - out of mounts in backrest using a screwdriver.

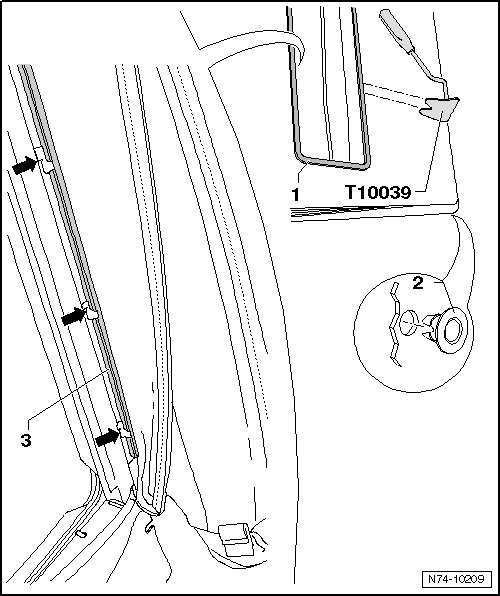

- On back side, pry frame - 1 - out of mounts in backrest using Release Lever (T10039).

- Using a screwdriver, pry the clamping profile all the way around the pass-through opening off the mount.

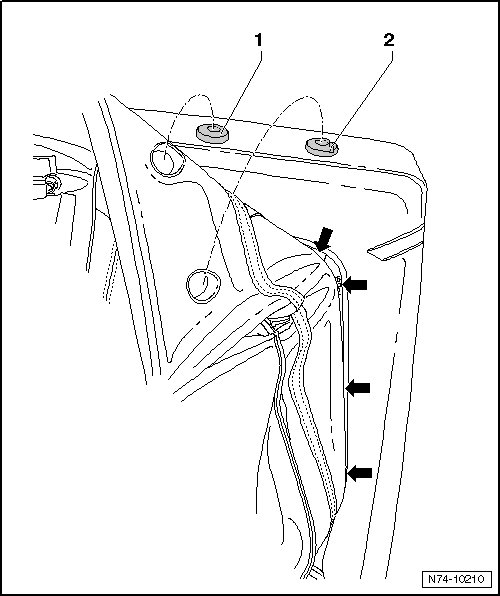

- Remove collar - 2 - on right side.

- Carefully remove the clamping profile - 3 - from the clips - arrows -.






- Pry rest of clamping profile all around out of mounts in backrest, as described.

- Roll up the cover on the sides and pull the cushion over the head restraint guides - 1 - and - 2 -.

- Using a small screwdriver, press apart side ribs of mounts - arrows - and pull out grip channels.






- Remove the remaining attachments and remove the cover from the backrest.

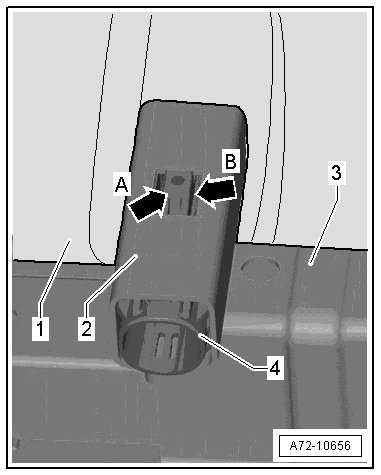

- Fold the upholstery - 1 - up until the headrest tubes - 2 - welded into the backrest shell - 3 - with the headrest guides - 4 - are visible.






- Press the retaining tab - arrow A - down until the headrest guide - 4 - is no longer locked.

- Remove upholstery from backrest frame.

Installing

- Installation is reverse of removal.
