Bench Seat Cover and Upholstery, Passat CC from MY 2009 and CC from MY 2010

Bench Seat Cover and Upholstery, Passat CC from MY 2009 and CC from MY 2010

Removing

- Remove seat bench. Refer to => [ Seat Bench, Passat from MY 2006, Passat CC from MY 2009 and CC from MY 2010 ] Seat Bench, Passat from MY 2006, Passat CC from MY 2009 and CC from MY 2010

- Remove the storage compartment and the seat bench, refer to => [ Storage Compartment, Seat Bench, Passat CC from MY 2009 and CC from MY 2010 ] Storage Compartment, Seat Bench, Passat CC from MY 2009 and CC from MY 2010

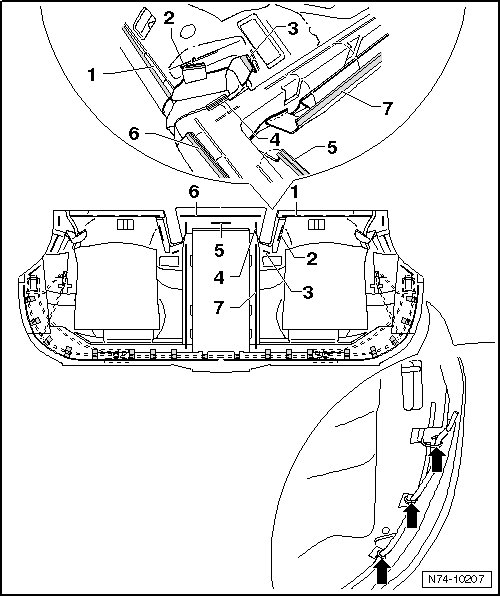

- Cut through all the upholstery clips - 2 - using a diagonal cutter.

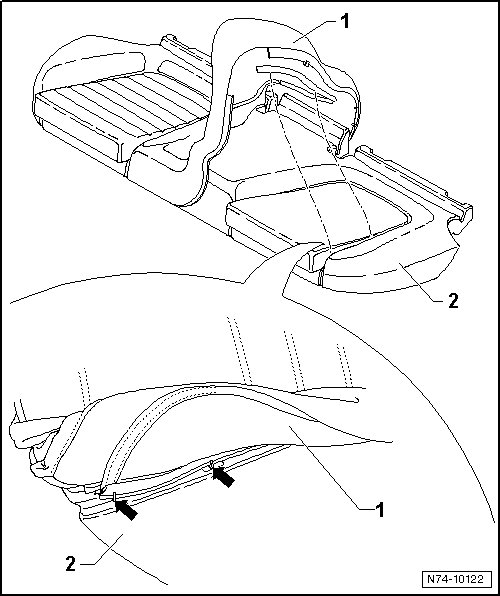

- Loosen the clamping profile all the way around - arrows - from the mount and fold up the cover - 1 -.

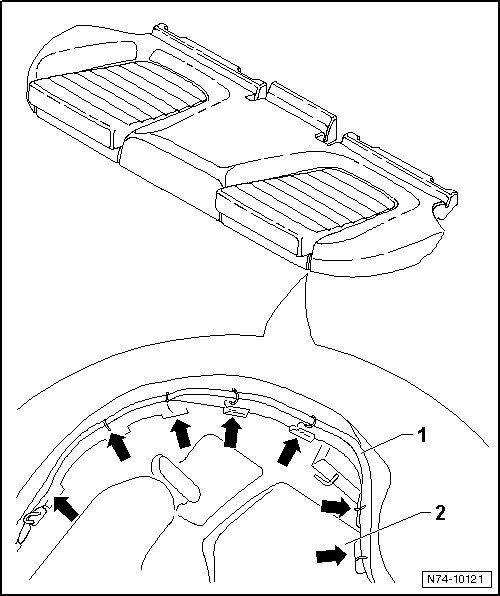

- Cut through all upholstery hooks - arrows - with a diagonal cutter.

- Remove the cover - 1 - from the padding - 2 -.






Installing

• When securing cover - 1 - to upholstery - 2 - using Upholstery Clip Pliers (V.A.G 1634).

- Install in reverse order of removal.
