Bench Seat Cover and Cushion, Passat Wagon from MY 2006

Bench Seat Cover and Cushion, Passat Wagon from MY 2006

• The work steps are described for the right bench seat. The work steps for the left bench seat are identical.

Removing

- Remove the seat bench, Passat Wagon from MY 2006, refer to => [ Seat Bench, Passat Wagon from MY 2006 ] Seat Bench, Passat Wagon from MY 2006.

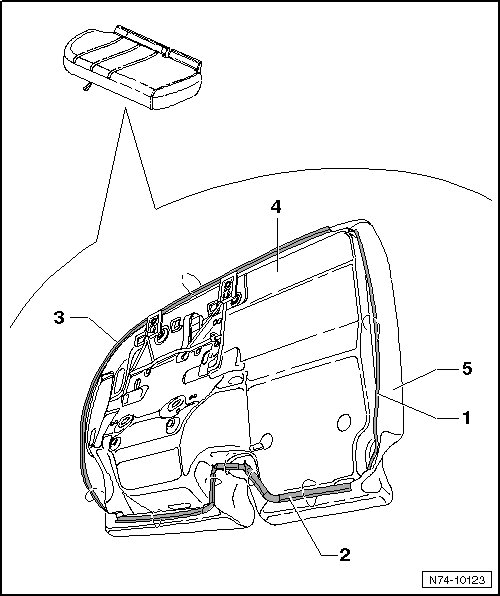

- Using a screw driver, pry clamping profiles - 1 -, - 2 - and - 3 - of cover - 5 - all around out of mounts in seat pan - 4 -.

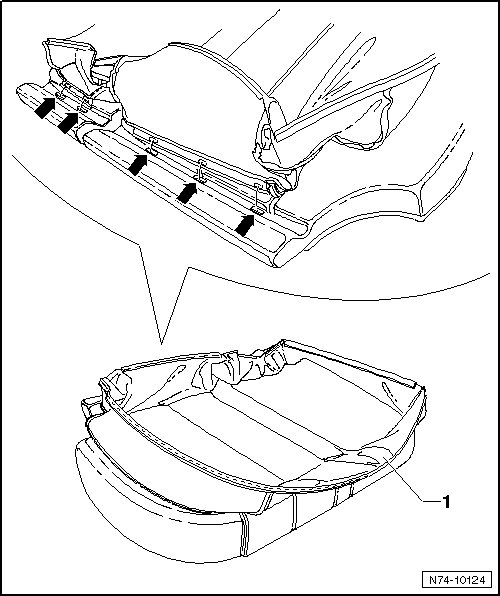

- Fold back cover - 1 -.

- Cut through the five upholstery clips - arrows - in rear area using a diagonal cutter.

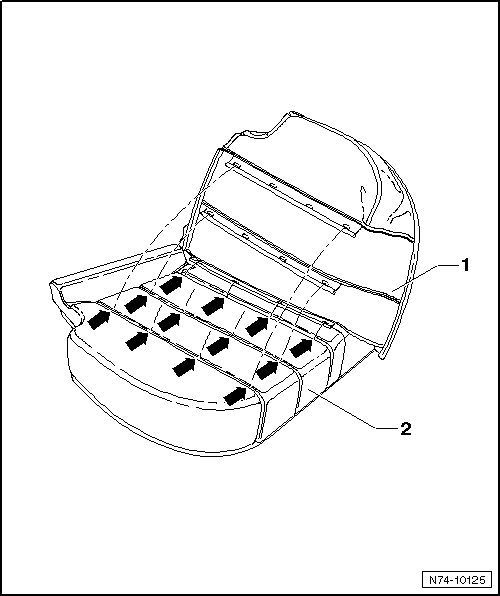

- Cut through all upholstery clips - arrows - and loosen cover - 1 - from upholstery - 2 - using a diagonal cutter.

- Loosen upholstery from seat pan.






Installing

- Install in reverse order of removal.

• Use Upholstery Clip Pliers (V.A.G 1634) when affixing cover to upholstery.
