Seat Bench, Passat from MY 2006, Passat CC from MY 2009 and CC from MY 2010

Seat Bench, Passat from MY 2006, Passat CC from MY 2009 and CC from MY 2010

Removing

- In vehicles with heated rear seats, switch ignition off.

Vehicles with integrated child seat

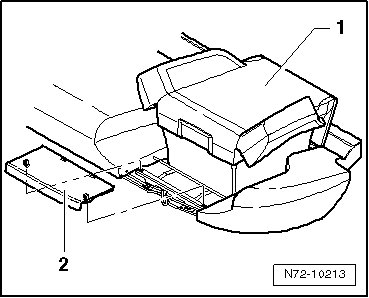

- Swing integrated child seat - 1 - upward.






- Pull the foot compartment - 2 - out of mounts in bench seat.

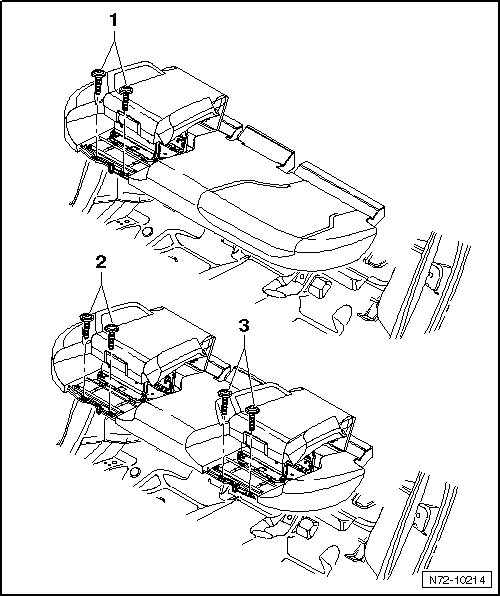

- For vehicles with one integrated child seat, remove two bolts - 1 - (8 Nm).

- For vehicles with two integrated child seats, remove two bolts - 2 - and - 3 - (8 Nm) respectively.






All vehicles

• To provide a better overview, rear seat backrest is not depicted in the illustration.

• Removing and installing the seat bench is identical for the Passat from MY 2006, the Passat CC from MY 2009 and the CC from MY 2010. The seat bench for the Passat from MY 2006 is shown in the illustration.

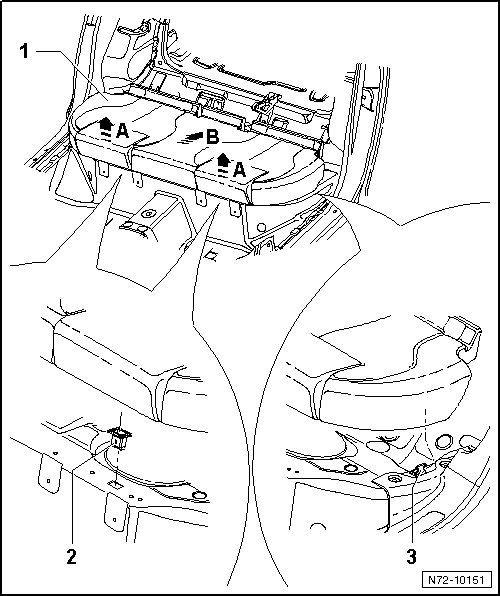

- Pull the front of the bench seat - 1 - up and out of the two mounts - 2 - - arrows A -.

- Push the bench seat toward rear - arrow B -.

- Pull the back of the bench seat up and out of side guide plates - 3 -.

- On vehicles with heated rear seats, disconnect seat heating wiring harness.

- Remove the bench seat from vehicle.






Installing

- Installation of bench seat - 1 - is the same as removal, but in reverse order.

• Before installation, check both mounts - 2 - fro damage and replace if necessary.
