Fixed Rear Seat Backrest, Passat CC from MY 2009 and CC from MY 2010

Fixed Rear Seat Backrest, Passat CC from MY 2009 and CC from MY 2010

Removing

- Remove the luggage compartment carpet.

• This is necessary when removing the fixed rear seat backrest.

• There is a hidden loop on the left and right sides of the rear seat backrest which make it possible to unlock and then fold the backrest.

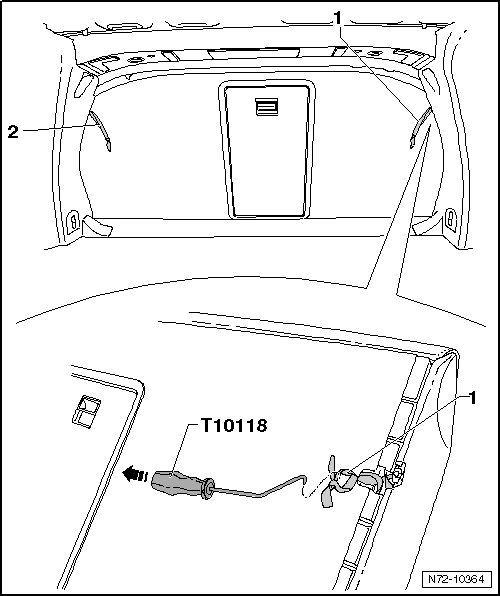

- Using the assembly tool (T10118) reach between the backrest and the body and pull the right loop - 1 - out of the retainer - arrow -.

- Pull the left loop out of the retainer.

- Pull the loops - 1 - and - 2 - toward the inside and fold the backrest forward.

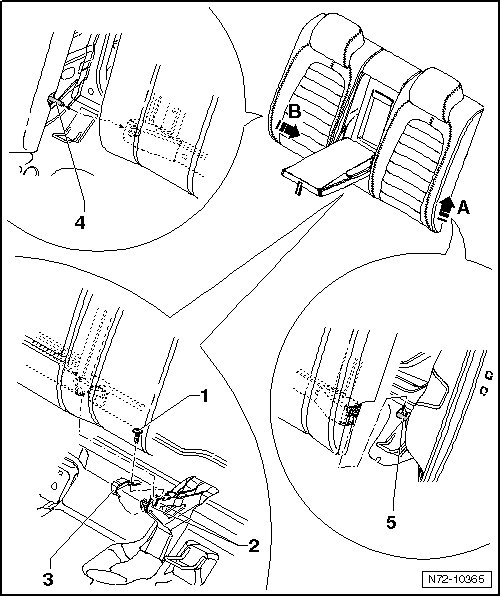

- Remove bolt - 1 - (8 Nm).

- Remove clamp - 3 - from center backrest bearing - 2 -.

- Move the backrest into it vertical position.

- Pull the left side of the backrest off the hinge - 4 - - arrow A -.

- Pull the right side of the backrest off the hinge - 5 - - arrow B - and remove it from the vehicle.






Installing

- Install in reverse order of removal.
