Seat Ventilation Switch E655, Passat CC from MY 2009 and CC from MY 2010

Seat Ventilation Switch E655, Passat CC from MY 2009 and CC from MY 2010

The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

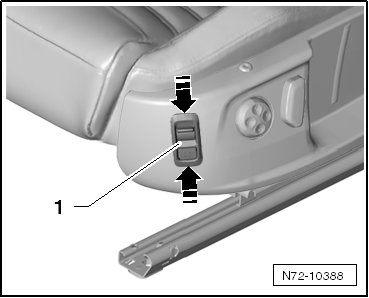

- Release the seat ventilation switch (E655) - 1 - latches on the inside of the trim - arrows -, remove the switch from the trim and disconnect the connector.






Installing

- Install in reverse order of removal.
