Lumbar Support forward/back adjustment Motor and Position Sensor -V230- / -G375-






Comfort Systems - Connector Views

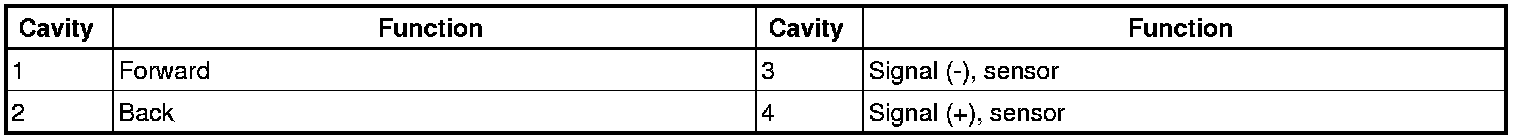

Lumbar support forward/back adjustment motor and position sensor -V230- / -G375-
