Diagram 35/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver's Seat Heater Control Module, Lumbar Support Adjustment Control Head





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

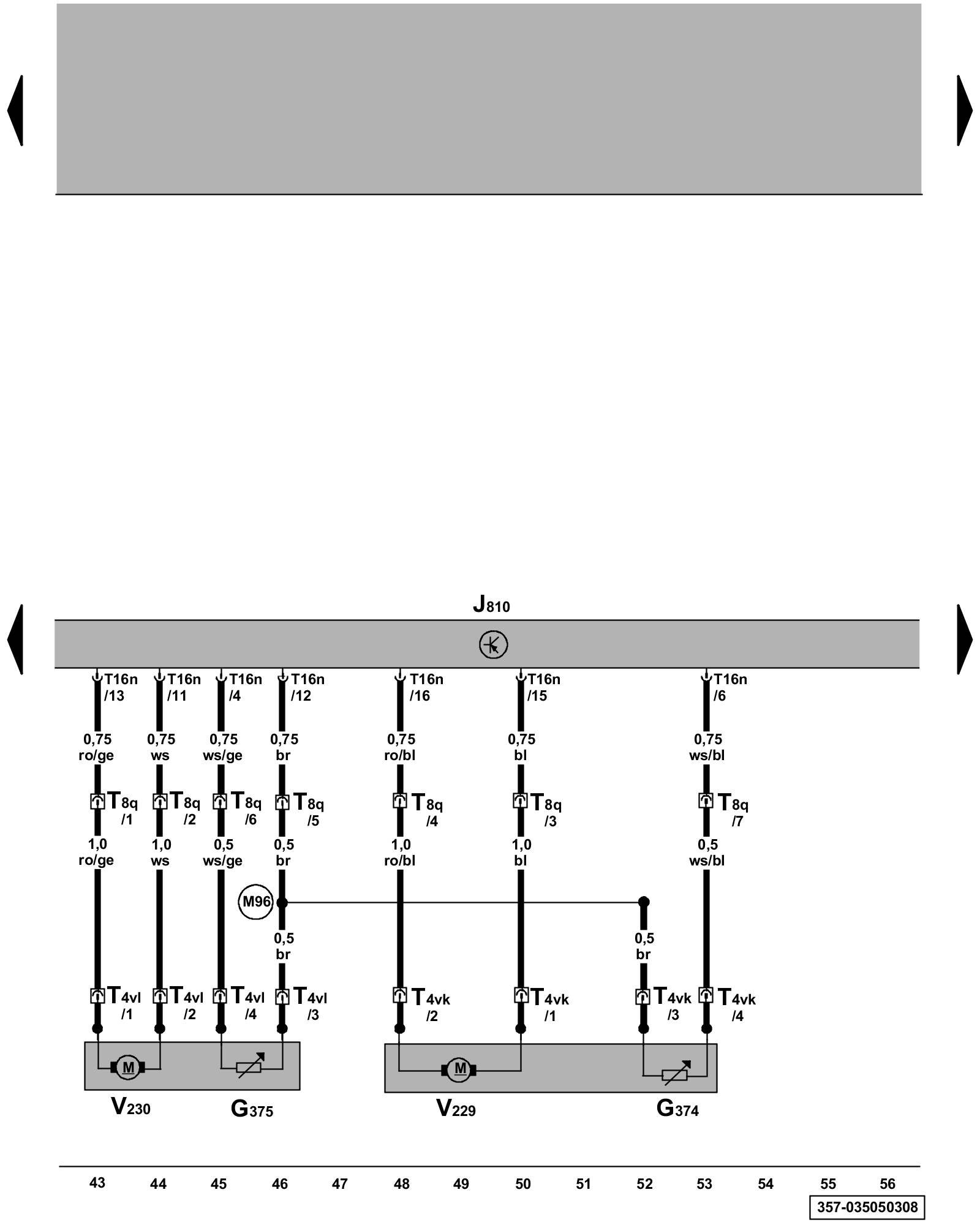

G374 - Lumbar Support Height Adjustment Sensor Lumbar Support Height adjustment Motor and Position Sensor -V229- / -G374-

G375 - Lumbar Support Fore/Aft Adjustment Sensor Lumbar Support forward/back adjustment Motor and Position Sensor -V230- / -G375-

J810 - Driver's Seat Adjustment Control Module

T4vl - 4-Pin Connector, black

T4vk - 4-Pin Connector, black

T8q - 8-Pin Connector, black, connector station seat backrest

T16n - 16-Pin Connector, black

V229 - Lumbar Support Height Adjustment Motor Lumbar Support Height adjustment Motor and Position Sensor -V229- / -G374-

V230 - Lumbar Support Fore/Aft Adjustment Motor Lumbar Support forward/back adjustment Motor and Position Sensor -V230- / -G375-

(M96) - Connection 4 (in seat adjustment wiring harness)

Previous Diagram 35/4 (Tracks 29-42)

Next Diagram 35/6 (Tracks 57-70)
