Diagram 38/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

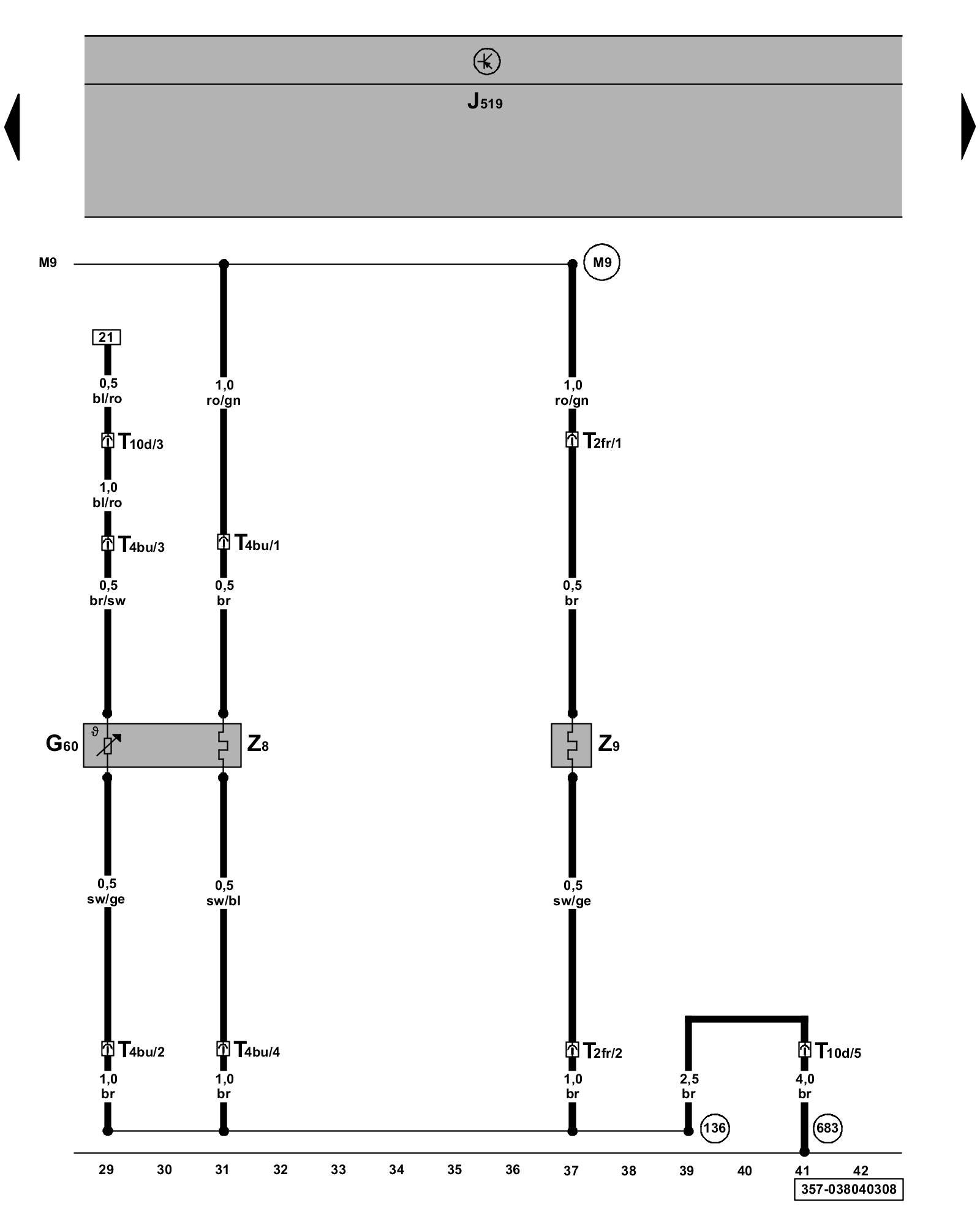

Front Passenger's Seat Heating Element, Front Passenger's Backrest Heating Element





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G60 - Front Passenger's Heated Seat Temperature Sensor Heated Front Pass Seat -G60- / -Z8-

J519 - Vehicle Electrical System Control Module Control Modules in Interior

T2fr - Double Connector, black

T4bu - 4-Pin Connector, black, below front passenger's seat

T10d - 10-Pin Connector, black, connector station front passenger's side, below seat

Z8 - Front Passenger's Seat Heating Element Heated Front Pass Seat -G60- / -Z8-

Z9 - Front Passenger's Backrest Heating Element Front Pass Backrest Heating Element -Z9-

(136) - Ground Connection 2 (in heated seats wiring harness)

(683) - Ground Connection (on right front side member) Overview Of Ground Connections in Interior

(M9) - Connection (in seat adjustment wiring harness)

Previous Diagram 38/3 (Tracks 15-28)

Next Diagram 38/5 (Tracks 43-56)
