Access/Start Authorization Antenna 1 in Vehicle Interior R138

Access/Start Authorization Antenna 1 in Vehicle Interior R138

Component location of Access/Start Authorization Antenna 1 is beneath center console at front, between front seats.

• No coding, basic setting or adaptation is necessary if Access/Start Authorization Antenna 1 is replaced. Erase the entry in the DTC memory via "guided fault finding" with the Vehicle Diagnostic Tester.

Removing

• The alignment and exact position of the antennas are crucial for their function. Before removing antennas in the passenger compartment, mark the exact position and alignment of antennas and secure them in exactly these positions and alignments when installing. The thickness of the adhesive pad layer on antennas is an integral part of their function. If the bond of one antenna loosens, do not reapply standard adhesive on it. In this case, a new antenna must be installed with a new adhesive pad. If this is not done, the KESSY system will malfunction.

- Switch off the ignition and all electrical consumers and move the ignition key or start button into the 0 position (preliminary engaged position).

- Remove the center console.

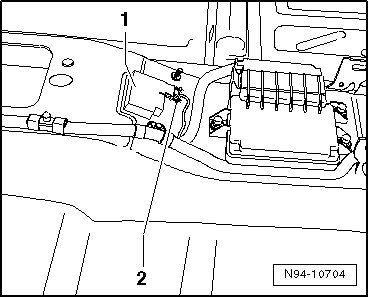

• For reasons of clarity, vehicle floor carpet is not depicted in the illustration.






- Disengage and disconnect harness connector - 2 - and remove adhesive of Access/Start Authorization Antenna 1 - 1 -.

- Remove Access/Start Authorization Antenna 1 - 1 - from vehicle.

Installing

Install in reverse order of removal. Note the following:

- Insert harness connector - 2 - into Access/Start Authorization Antenna 1 - 1 - until it engages.

- Bond the Access/Start Authorization Antenna 1 onto center console in the position and alignment marked during removal.
