Driver Exterior Door Handle Touch Sensor -G415/ R134-

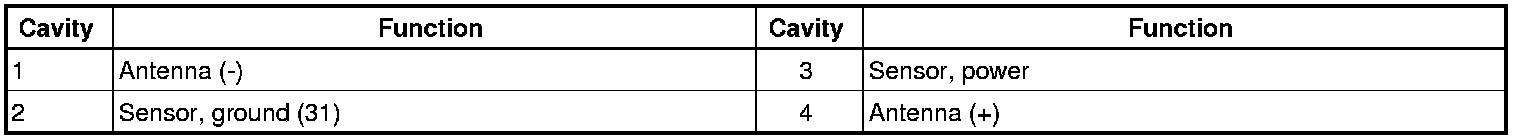

Access/Start Authorization System - Connector Views

Driver exterior door handle touch sensor -G415/R134-
