Storage Compartment, Comfort Center Console, Passat and Passat Wagon from MY 2006, and Passat CC from MY 2009

Storage Compartment, Comfort Center Console, Passat and Passat Wagon from MY 2006, and Passat CC from MY 2009

Removing

- Remove the Comfort center console, Passat from MY 2006, Passat Wagon from MY 2006 and Passat CC 2009, refer to => [ Comfort Center Console, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009 ] Comfort Center Console, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

- Remove the air channel, center console, Passat from MY 2006, Passat Wagon from MY 2006 and Passat CC 2009, refer to => [ Center Console, Air Channel, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009 ] Center Console, Air Channel, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009.

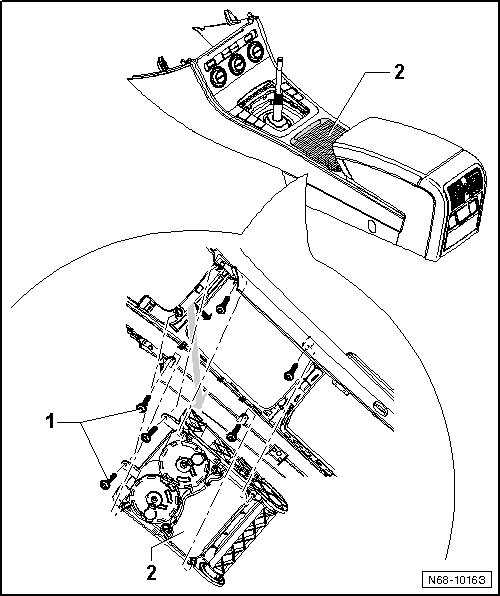

- Remove six screws - 1 - (1.5 Nm).

- Lower storage compartment - 2 - slightly in front area.

- Slide storage compartment forward and remove it downward from center console - arrow -.






Installing

- Install in reverse order of removal.
