Steering Column Trim

Steering Column Trim

Removing

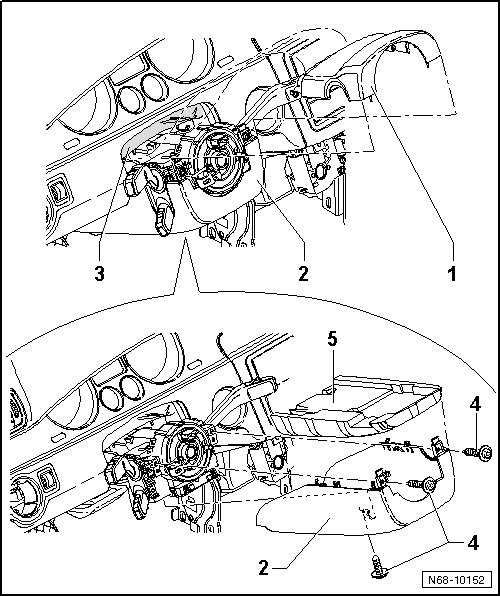

• For reasons of clarity, the steering wheel is not shown in the illustration.

- Remove the driver airbag unit:

• Passat from MY 2006 and Passat Wagon from MY 2006, refer to => [ Driver Side Airbag Unit, Passat from MY 2006 and Passat Wagon from MY 2006 ] Driver Side Airbag Unit, Passat from MY 2006 and Passat Wagon from MY 2006

• Passat CC from MY 2009 and CC from MY 2010, refer to => [ Driver Side Airbag Unit, Passat CC from MY 2009 and CC from MY 2010 ] Driver Side Airbag Unit, Passat CC from MY 2009 and CC from MY 2010

- Loosen upper steering column trim - 1 - from mounts in lower steering column trim - 2 -.

- Loosen upper steering column trim from gap cover - 3 -.

- Remove the three bolts - 4 - (1.5 Nm).

- Loosen lower steering column trim - 2 - from mounts and remove foam insert - 5 -, if necessary.






Installing

- Install in reverse order of removal.
