Rear Trim

Rear Trim

Removing

- Switch off the ignition.

Vehicles with Converter with Socket, 12V, 230V (U13)

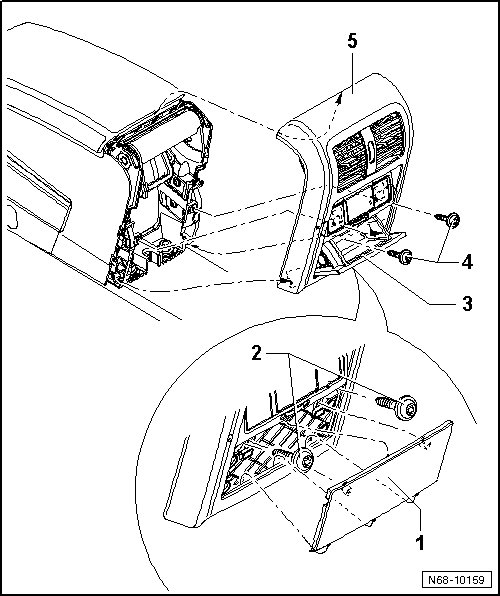

- Pry trim - 1 - out of mounts and remove two bolts - 2 - (1.5 Nm).

Vehicles with a storage compartment

- Open storage compartment - 3 - and remove two screws - 4 - (1.5 Nm).

All vehicles

- Remove rear trim from mounts in center console.

- Depending on vehicle equipment, disconnection wiring harnesses from rear trim - 5 -.






Installing

- Install in reverse order of removal.
