Infotainment Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

Infotainment Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

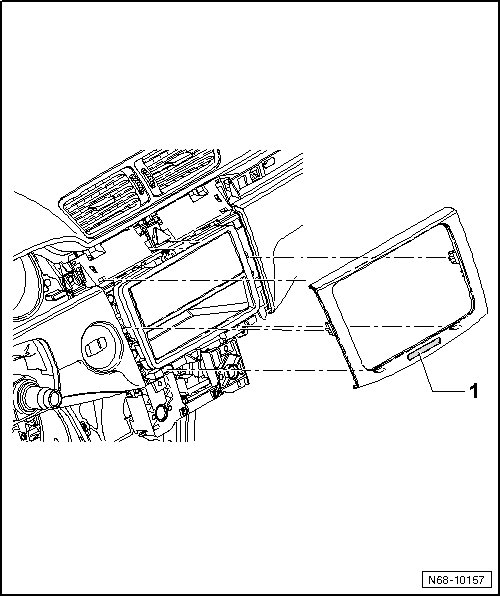

• The adjacent components are only partially shown in the illustration.

Removing

- Switch off the ignition.

- Carefully pry the trim out of the mount in the instrument panel with the trim removal wedge (3409).

- If equipped, disconnect the wiring harness from the front passenger airbag disabled indicator lamp (K145) - 1 -.






Installing

- Install in reverse order of removal.
