Driver Side Trim, Removing and Installing, CC from MY 2010

Driver Side Trim, Removing and Installing, CC from MY 2010

Removing

- Remove left side instrument panel cover. Refer to => [ Instrument Panel Side Covers ] Instrument Panel Side Covers

- Remove the Infotainment trim, CC from MY 2010, refer to => [ Infotainment Trim, CC from MY 2010 ] Infotainment Trim, CC from MY 2010.

- Remove the instrument cluster trim, CC from MY 2010, refer to => [ Instrument Cluster Trim, CC from MY 2010 ] Instrument Cluster Trim, CC from MY 2010.

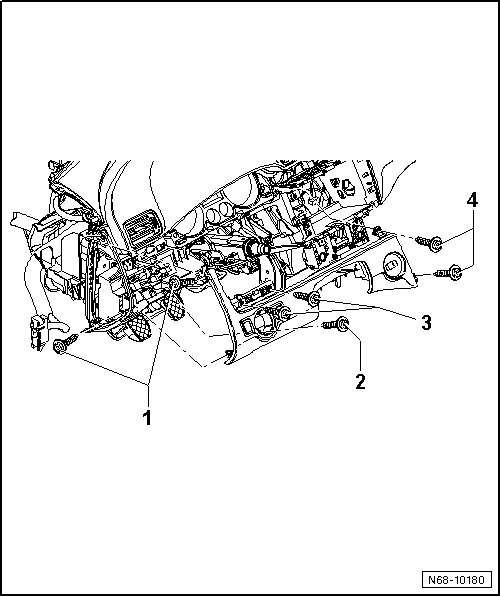

- Remove two side screws - 1 - (1.5 Nm).

- Press rotary light switch in as far as stop, rotate it toward right until it stands vertically, now pull it out and disconnect wiring harness.

- Remove the bolt - 2 - (1.5 Nm).

- Remove the two bolts - 3 - (1.5 Nm).

- Remove the two bolts - 4 - (1.5 Nm).

- Loosen trim from instrument panel.

- Disconnect the connector from the headlamp range control.

- Disconnect wiring harness from ignition lock.






Installing

- Install in reverse order of removal.
