Center Storage Compartment Unit, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

Center Storage Compartment Unit, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

Removing

- Switch off the ignition.

- Remove the glove compartment. Refer to => [ Glove Compartment ] Glove Compartment

- Remove instrument panel center trim. Refer to => [ Center Instrument Panel Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009 ] Center Instrument Panel Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

- Remove instrument cluster trim. Refer to => [ Instrument Cluster Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009 ] Instrument Cluster Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

- Remove passenger side instrument panel trim. Refer to => [ Front Passenger Side Instrument Panel Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009 ] Front Passenger Side Instrument Panel Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

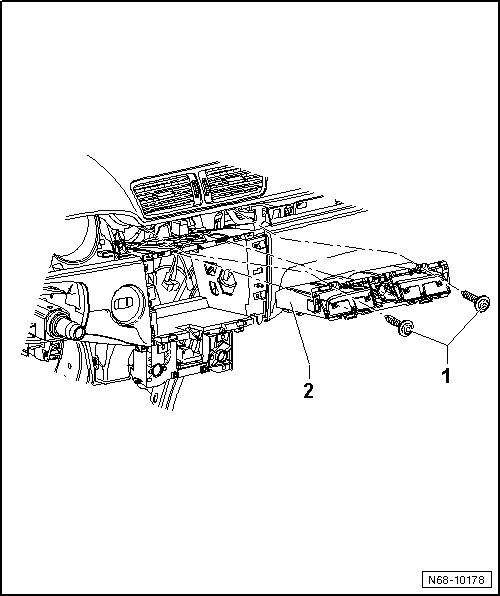

• To provide a better overview, the adjacent components are only partially shown in the illustration.

- Remove the two bolts - 1 - (1.5 Nm).

- Remove center storage compartment unit - 2 - from instrument panel.

- Disconnect the wiring harness from the emergency flasher button (E229).






Installing

- Install in reverse order of removal.
