Center Console Storage Compartment, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

Center Console Storage Compartment, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

Removing

- Remove Infotainment trim. Refer to => [ Infotainment Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009 ] Infotainment Trim, Passat from MY 2006, Passat Wagon from MY 2006, and Passat CC from MY 2009

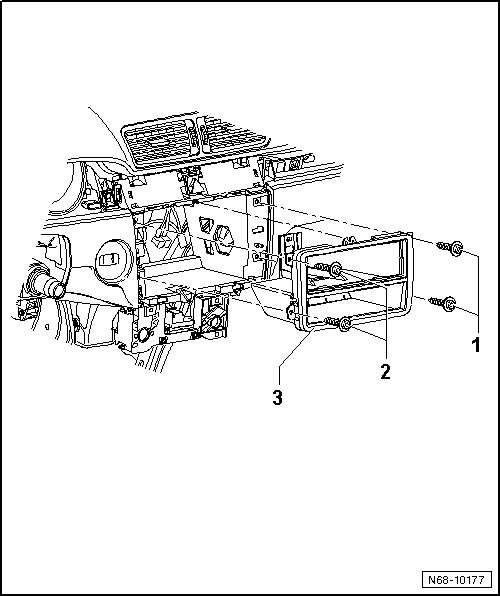

• To provide a better overview, the adjacent components are only partially shown in the illustration.

- Remove two screws - 1 - and - 2 - (1.5 Nm).

- Remove compartment - 3 - from instrument panel.






Installing

- Install in reverse order of removal.
