Center Console Armrest

Center Console Armrest

Removing

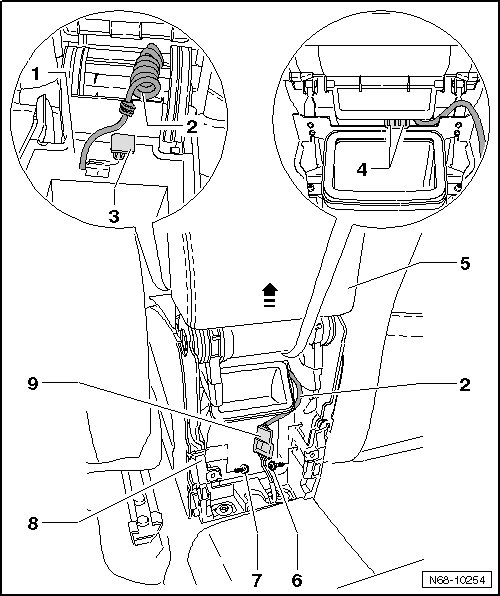

- Remove rear trim. Refer to => [ Rear Trim ] Rear Trim.

- Remove respectively the two bolts - 6 - and remove the two bolts - 7 - to 1.5 Nm.

Vehicles with telephone preparation

- Loosen connector - 9 - from armrest frame - 8 - and disconnect.

- Release both retaining hooks - 4 - and unclip trim - 3 -.

- Remove armrest - 5 - from frame - 8 - - arrow - until wiring harness - 2 - is accessible.

- Thread wiring harness - 2 - through opening in center console armrest - 1 -.

All vehicles

- Remove armrest - 5 - from frame - arrow -.






Installing

- Install in reverse order of removal.
