Armrest Storage Compartment

Armrest Storage Compartment

Removing

- Remove rear trim => [ Rear Trim ] Rear Trim.

- Remove center console armrest => [ Center Console Armrest ] Center Console Armrest.

- Open storage compartment - 1 -.

- Press retaining hooks - 3 - and - 4 - inward and remove storage compartment from mount - 2 - - arrows -.

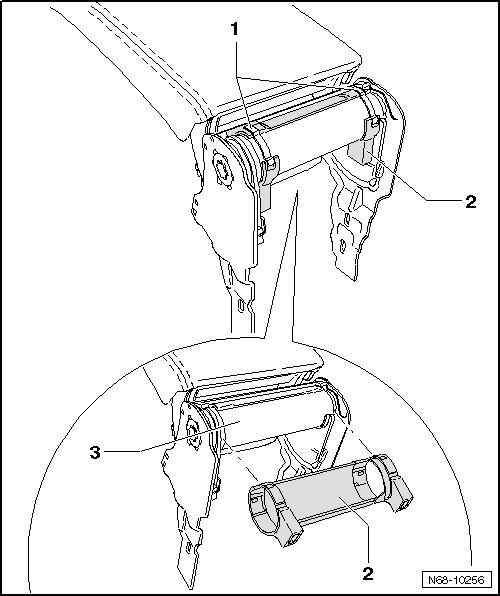

- Using a small screwdriver, pry clips - 1 - from mount - 2 -.

- Remove mount from joint - 3 -.






Installing

- Install in reverse order of removal.
