C-Pillar Trim Panel, Vehicles without Sun Shade, Passat from MY 2006

C-Pillar Trim Panel, Vehicles without Sun Shade, Passat from MY 2006

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

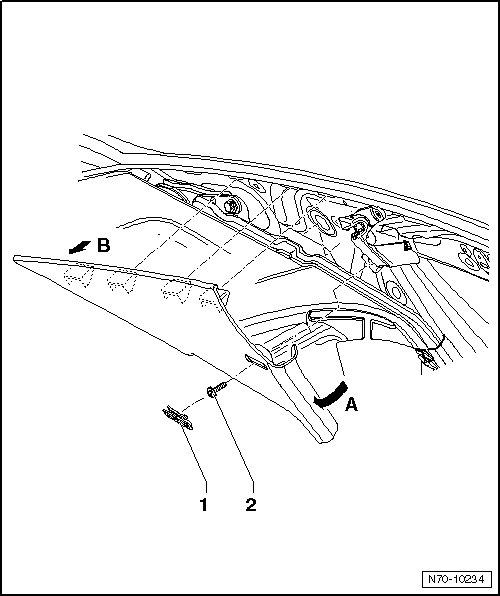

- Remove airbag emblem - 1 - and remove screw - 2 - (2 Nm).

- Loosen trim from door seal molding - arrow A -.

- Pull trim inward out of mounts - arrow B -.

• When installing, airbag emblem - 1 - must be replaced.






Installing

- Install in reverse order of removal.
