A-Pillar Upper Trim, Passat from MY 2006 and Passat Wagon from MY 2006

A-Pillar Upper Trim, Passat from MY 2006 and Passat Wagon from MY 2006

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

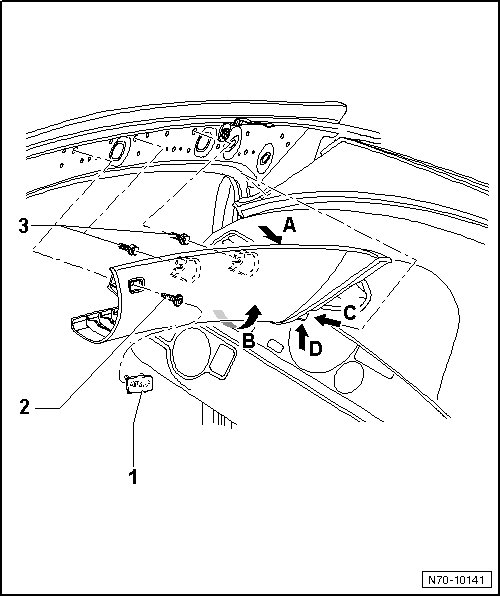

- Remove airbag emblem - 1 - and remove screw - 2 - (2 Nm).

- Remove trim in area of mounting clip - 3 - inward from mounts - arrow A -.

• For the sake of illustration, securing elements - 3 - are depicted as removed in the illustration.

- Loosen trim from door seal molding - arrow B -.

- Remove trim from front mounts in instrument cluster - arrow C -.

- Remove trim upward out of mounts - arrow D -.

• When installing, airbag emblem - 1 - must be replaced.

• Before installing, inspect the securing clips for damage and replace if necessary.






Installing

- Install in reverse order of removal.
