A-Pillar Upper Trim for Passat CC from 2009 and CC from 2010

A-Pillar Upper Trim for Passat CC from 2009 and CC from 2010

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

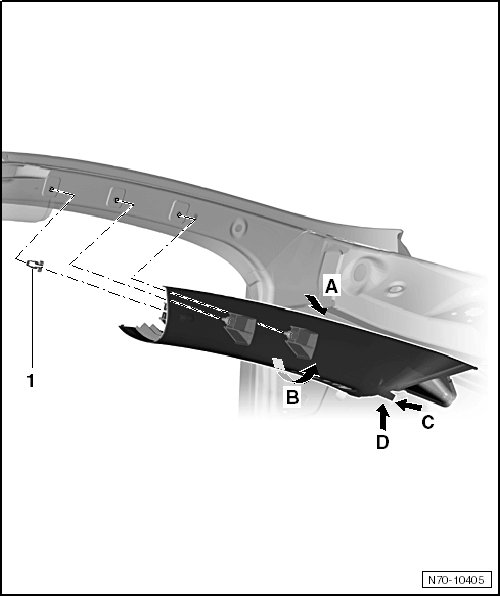

• For the sake of illustration, the clamp - 1 - is not shown in the illustration.

- Pull the trim near the clamp - 1 - out of the catch - arrow A -, then compress the clamp between the headliner and the trim using long nose pliers and remove the trim from of the upper catch.

The clamp - 1 - may not be used again and must be replaced prior to installing!

- Loosen trim from door seal molding - arrow B -.

- Remove trim from front mounts in instrument cluster - arrow C -.

- Remove trim upward out of mounts - arrow D -.






Installing

- Install in reverse order of removal.
