Rear Shelf without Sun Shade

Rear Shelf without Sun Shade

Removing

- Remove trim on C-pillars, sedan:

• Vehicles without sun shade: => [ C-Pillar Trim Panel, Vehicles without Sun Shade, Passat from MY 2006 ] C-Pillar Trim Panel, Vehicles without Sun Shade, Passat from MY 2006

- Remove the seat bench; refer to => [ Seat Bench, Passat from MY 2006, Passat CC from MY 2009 and CC from MY 2010 ] Seat Bench, Passat from MY 2006, Passat CC from MY 2009 and CC from MY 2010

- Remove side upholstery:

• With rear side airbag: => [ Side Upholstery with Side Airbag ] Side Upholstery with Side Airbag

• without rear side airbags: => [ Side Upholstery without Side Airbag ] Side Upholstery without Side Airbag

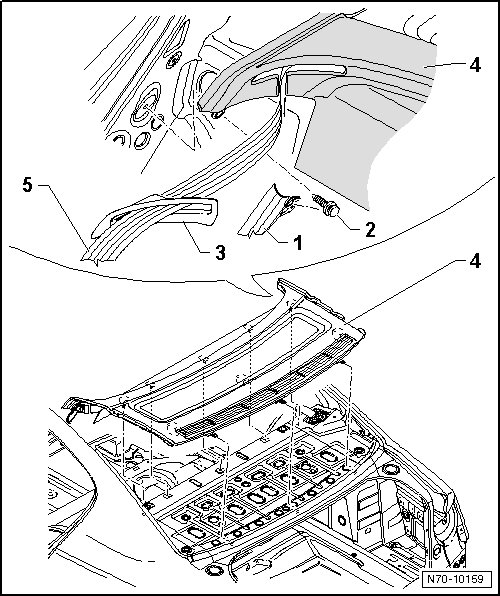

- Remove wheel housing trim on both sides - 1 - from clip - 2 -.

- Remove clip - 2 - on both sides from body.

- Remove rear shelf upward out of mounts.

- Remove seat belt trim - 3 - on both sides from rear shelf - 4 -.

- Thread seat belt - 5 - on both sides through opening in rear shelf.






Installation

- To install, perform the steps used for removal in reverse order.

• Before installation, mounting elements of rear shelf must be checked for damage and replaced if necessary.
