Headliner, Removing and Installing, Passat Wagon from MY 2006
Headliner, Removing and Installing, Passat Wagon from MY 2006
Removing
• If the headliner is being replaced, the it is necessary on vehicles with the illuminated "vanity mirror" that there be two openings for the replacement part. The location of the openings should be taken from the old part. Use a carpet knife to cut the openings. To prevent damage to the headliner material, cut starting from the material surface to the base. The edges of the openings have a reinforcement plate.
Vehicles with sunroof:
- Open sunroof.
- Switch off the ignition.
- Remove the front and rear interior and reading lamps in the headliner => Electrical Equipment.
- Remove storage compartment with console in headliner => [ Storage Compartment with Console in Headliner ] Storage Compartment with Console in Headliner
- Remove upper trim on A-pillars => [ A-Pillar Upper Trim, Passat from MY 2006 and Passat Wagon from MY 2006 ] A-Pillar Upper Trim, Passat from MY 2006 and Passat Wagon from MY 2006
- Remove sun visors.
• basic => [ Basic Sun Visors, Passat from MY 2006 and Passat Wagon from MY 2006 ] Basic Sun Visors, Passat from MY 2006 and Passat Wagon from MY 2006
• double => [ Double Sun Visors, Passat from MY 2006 and Passat Wagon from MY 2006 ] Double Sun Visors, Passat from MY 2006 and Passat Wagon from MY 2006
- Remove roof grab handle => [ Roof Grab Handles ] Service and Repair
- Remove upper B-pillar trim => [ B-Pillar Upper Trim, Passat from MY 2006 and Passat Wagon from MY 2006 ]
- Remove the C-pillar trim, Passat Wagon from MY 2006, refer to => [ C-Pillar Trim, Passat Wagon from MY 2006 ]
- Remove the roof end strip, Passat Wagon from MY 2006, refer to => [ Roof End Strip, Passat Wagon from MY 2006 ] Roof End Strip, Passat Wagon from MY 2006.
Vehicles with rear side-airbag:
- Disconnect the battery.
All vehicles:
- Remove the lock carrier cover, Passat Wagon from MY 2006, refer to => [ Lock Carrier Cover, Passat Wagon from MY 2006 ] Lock Carrier Cover, Passat Wagon from MY 2006
- Fold left bench seat and its backrest forward.
- Remove the side cushion:
• With rear side airbag, refer to => [ Side Upholstery with Side Airbag ] Side Upholstery with Side Airbag
• without rear side airbags => [ Side Upholstery without Side Airbag ] Side Upholstery without Side Airbag
- Remove the luggage compartment side trim panel, Passat Wagon from MY 2006:
• right => [ Right Luggage Compartment Side Trim, Passat Wagon from MY 2006 ] Right Luggage Compartment Side Trim, Passat Wagon from MY 2006
• left => [ Left Luggage Compartment Side Trim, Passat Wagon from MY 2006 ] Left Luggage Compartment Side Trim, Passat Wagon from MY 2006
- Remove D-pillar trim panels => [ D-Pillar Trim, Passat Wagon from MY 2006 ]
Vehicles in which an interior rearview mirror with rain sensor is installed:
- Remove the side cover caps from the interior rearview mirror => [ Interior Rearview Mirror with Rain Sensor ] Interior Rearview Mirror with Rain Sensor
Vehicles with sunroof
- Push the wedge (T10039/1) between frame - 1 - and headliner - 2 -.
- Using the release lever (T10039/1) , separate the frame in - direction of the arrow - from the headliner, the whole way around.

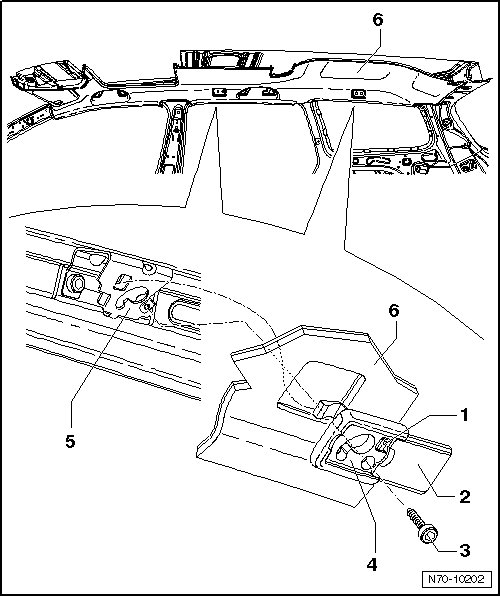

Vehicles with screen separator wall
- Operate locking mechanism - 1 - and pull off cover - 2 -.
- Remove the bolt - 3 - (2 Nm).
- Disengage panel - 4 - from bracket - 5 - in body.
- Remove remaining panels as described.
All vehicles
- Remove headliner from door seal moldings.
- Lower the headliner - 6 - and remove it from vehicle with a second mechanic through rear lid.
Installing
- Install in reverse order of removal.
• The installation of the headliner is made much easier by replacing clips "part number: 1K0 867 633" below the roof grab handle. Therefore, replacing the old clips is recommended.
