Tunnel Brace Assembly Overview

Tunnel Brace Assembly Overview

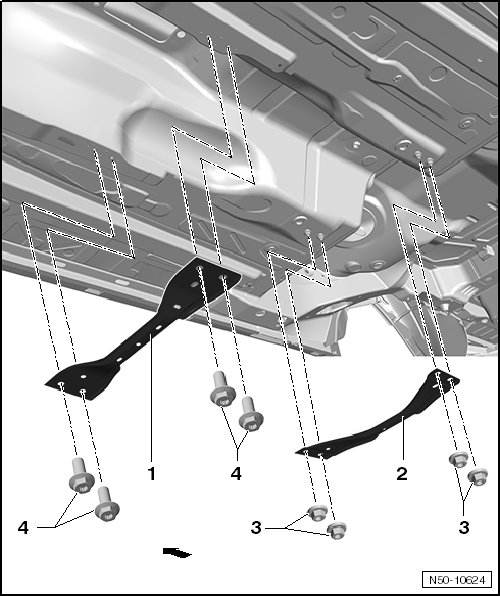

• - Arrow - points in direction of travel.






1 Front tunnel bridge

2 Rear tunnel bridge

3 Nut

• Quantity: 4

• Tightening specification: 20 Nm

4 Bolt

• Quantity: 4

• Tightening specification: 20 Nm
